What’s the truck blind spot detection system

Table of Contents

Introduction:

Starting with a brief introduction, the blind spot detection system nowadays happens to be an utter necessity to be included in vehicles. With time, truck blind spot detection systems have significantly contributed to increasing people’s safety. The Blind spot detection system tends to cover a broad spectrum of aspects that include several things like enhancing the safety measures while driving and ensuring that all of the precautionary measures are under consideration. Last but not least, their overall and core value revolves around providing the driver’s safety regardless of the vehicle, which can be a car, a motorcycle, or even a truck. What else would we want other than our safety which is one of the core reasons blind spot detection systems hold such an immense degree of importance?

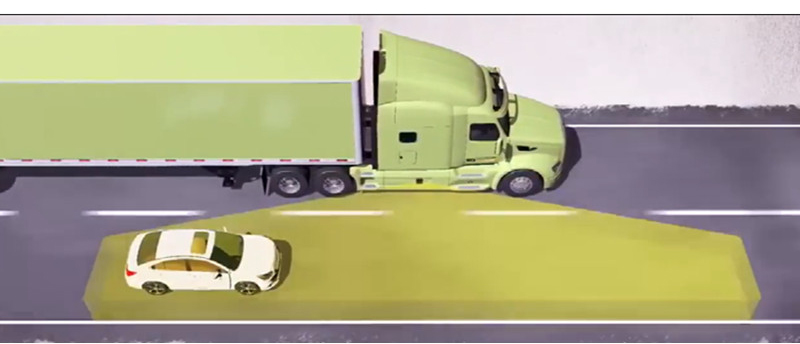

79G truck blind spot detection system

What is a truck Blind Spot Detection System?

A blind-spot detection system is one of the remarkable wonders of this modern era of technological revolution. In simple words, it is a system that comprises a different set of components, each of which performs a certified function. These synergic efforts contribute directly towards the effectiveness of the overall design. The core element of the blind spot detection system is to warn the rider about the blind spots. The blind-spot detection system detects the incoming vehicles from a certified distance and, in turn, immediately warns the rider with the help of a different set of warnings to make the driver aware of the incoming vehicles. These warnings differ with respect to the specified model of the blind spot detection system. Some designs tend to send the alert in the form of a visual image, or some might send it in the form of an audio message. Lastly, some blind spot detection systems contain a warning light that blinks according to different specifications to notify the rider and make them aware of the vehicles lying within the range of blind spots.79G truck blind spot detection system What are blind spots?

Blind spots are such spots of the vehicle where the rider cannot see without the help of some additional support. Commonly, blind spots are located at the rear sides of the cars on the left-and-right hand side. In addition to that, the vehicle’s backside is also considered a major blind spot. Because of that, some of the modern and advanced blind spot detection systems tend to operate through a camera to provide the driver with significant visual aid.

Do trucks have Blind Spots?

Yes, trucks do have blind spots, as quite obvious it is that every vehicle tends to have blind spots. That is why it was made compulsory that all vehicles contain an in-built blind spot detection system. Furthermore, many researchers have concluded that blind spot detection system plays a vital role in our safety and ensuring a safe journey for us. Even if you are riding a bicycle, there are blind spots. So, it does not matter that whether you are driving a car, a motorcycle, a bike, or a truck, all of the vehicles tend to have blind spots.

To understand the different and versatile functionalities of the blind spot detection system. We will use an example, and this would help us grasp all the concepts regarding the components of this system and all of their specific functions that lie in the depths of this remarkable wonder of technological advancement. So, let us shed some light on the working of the following model of blind-spot detection system:

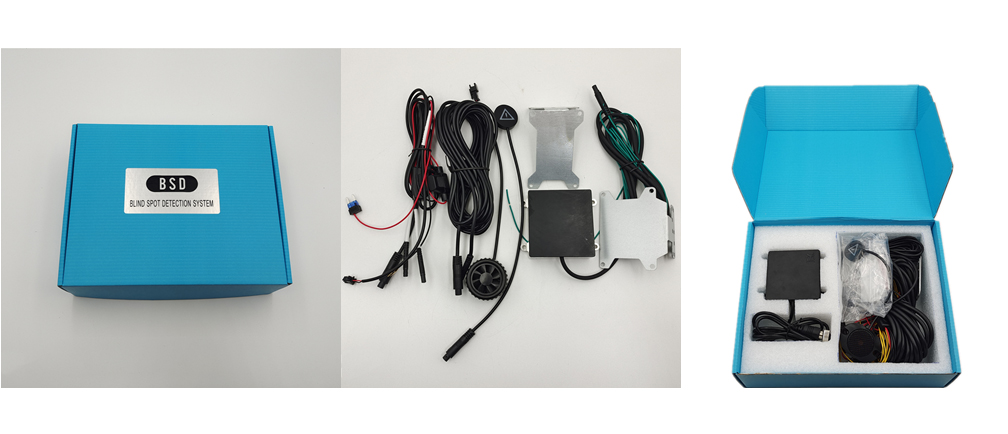

79G TRUCK BSD set truck blind spot detection system

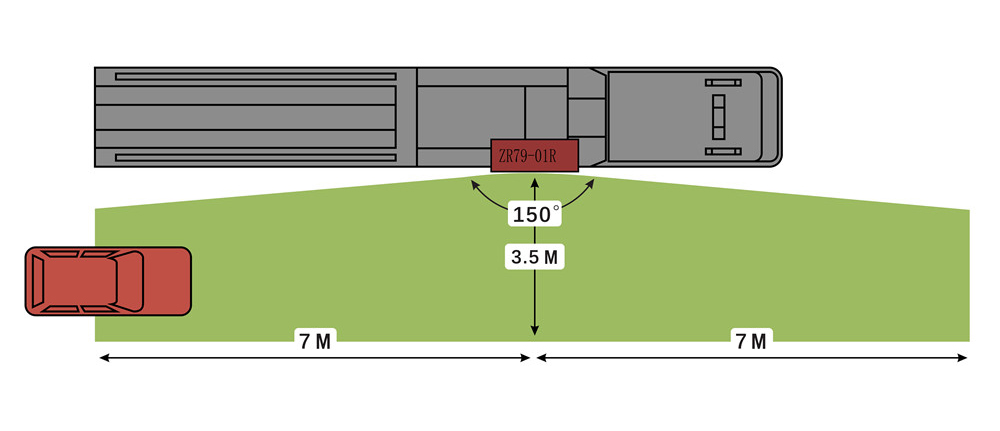

Truck Blind Spot Detection System 790G 01 R

This truck blind spot detection system has been immensely influential. It is regarded as brilliantly efficient, and this is because of the highly advanced technological equipment, which tends to perform the certified functions up to the fullest potential. This blind spot detection is also highly recommended because of its exceptionally advanced functionalities. So, let us now study the components of this system to know that how this blind spot detection system works:

Following are the well-known components of this truck blind spot detection system:

Microwave radar:

The microwave radar is one of the most iconic features of this truck blind spot detection. It happens to be quite innovative and upgraded. Microwave radar is already an exceptionally vital component of the blind spot detection system. It remains utterly unaffected from any of the circumstances caused by the external environment. These circumstances can mainly include intense weather conditions like air pollution or snowfall. Besides that, even if it is raining like cats and dogs, the microwave radar will continue to function up to the maximum extent. The core element here is that this microwave radar consists of a 79ghz capacity, which is brilliant. Because of this higher frequency, the radar sensors will tend to be more effective as well, which will ultimately increase the overall efficiency of the truck blind spot detection system.

Rear Mirrors:

Moving onwards, well the rear mirrors do not require any introduction as these are the parts of the truck blind spot detection system that lay the foundation of the essential visionary support which is to be provided to the driver. In addition, rear mirrors also happen to be one of the most common parts of the blind spot detection system. This is because rear mirrors are included in every vehicle as they significantly contribute to providing the necessary support to the truck driver. Even in some of the specific models of the blind spot detection system, the warning signs or warning images to notify the rider about the blind spots appear in the rear mirrors. That is why they are labeled as a pretty vital part.

Warning lights:

This truck blind spot detection system consists of LED warning lights as well. These warning lights are installed in front of the driver, just beside the rear mirrors. These warning lights tend to blink as soon as they get a signal from the microwave radar about the incoming vehicles which are about to pass through the blind spots. But in addition to that, these warning lights have a particular pattern with respect to which they blink to notify the driver of the truck about the vehicles that are present within the range of blind spots. However, this pattern also tends to vary with respect to the respective model of the blind spot detection system. Besides all of these, the color of the warning indicator light also depends upon and changes following the certified model of the blind spot detection system.

Bracket and Accessories Package:

The name in the heading indicates that the accessories package includes the additional equipment, which is also considered crucial during the installation procedures of any blind spot detection system. Furthermore, these accessories also come in quite handy regarding the operating procedures of the truck blind spot detection system. In some of the certified cases, some of the vehicles might not come with an in-built blind spot detection system. In such instances, a person tends to install a blind spot detection all by him or herself. They would surely need the accessories package to install a blind spot detection system successfully and flawlessly.

Buzzer and wire:

In this truck blind spot detection system, a buzzer and wire are also present. As previously quoted, all components play a vital role in making the blind spot detection system work correctly. So that is why the buzzer and wire also have their respective roles. Buzzer contributes to making the rider aware of the obstacles lying within the range of blind spots, besides the warning indication provided by the warning lights. Alongside the buzzer, the line here, in turn, tends to connect with the main supply of the system, which in turn is connected to the radar sensor, which transmits the detection signals to the warning indicator light.

Instruction manual:

Last but not least, among all of these important components, there lies another one which happens to be the instruction manual of the whole blind spot detection system. The instruction manual would be essential for people as it would act as a proper guideline for them. This could be of immense help. If any person faces any technological issue or cannot correctly install the truck blind spot detection system, or does not have much know-how regarding the technologies used in the system, can enjoy the benefits of having the instruction manual. This is because this instruction manual would guide them step by step in chronological order and help resolve all the possible ambiguities.

Going one step further, we will use the help of some of the technological parameters of this truck blind spot detection system to further grasp the extent of its efficient functionalities.

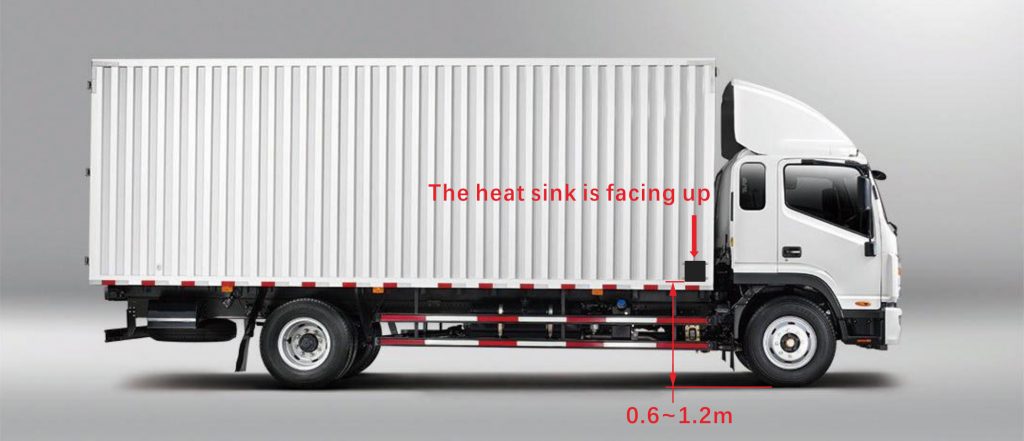

Truck BSD Radar Diagram 79G truck blind spot detection system

Technological Distinctions:

This truck blind spot detection system contains some of the iconic technological parameters that explain the reasons behind the brilliant functionalities. Well, here again, let us start with the microwave radar, which is a tremendously iconic component. It is already considered very effective as it remains uninfluenced from the happenings caused by the external environment. In addition to that, it has a remarkable working capacity of 79GHZ. Not just this, it has versatile functions of detecting the incoming vehicles in the blind spots based on the speed modes. The speed modes here are distinguished as the low and higher speed mode. Let’s look at the higher speed mode. The detection distance ranges from 0.2 to 3.5 meters for the horizontal direction. The vertical direction tends to range from -7 to 7 meters. On the other side of the picture, talking about the lower speed mode, the detection distance for the horizontal direction would be 0.2 to 1.5 meters. For the vertical directions, the detection distance would be the same as in the higher speed mode, which tends to be -7 to 7 meters. Now, look at this detection functionality and the effective frequency range of 76 to 81 GHz.

The operating voltage also has a distinctive range of 12-24 V. The power consumption of this blind spot detection system is also highly efficient, which happens to be just < 5W. In addition to that, this truck blind spot detection system also tends to have a measuring accuracy of 0.1 meters along with a temperature range – 40℃ ~ + 85℃. Last but not least, this system also tends to have a waterproof level of IP 67.

These brilliant features help us understand why these blind spot detection systems are treated as an utter necessity these days.

Advantages of Blind Spot Detection System:

All of the above discussion makes it quite clear that the blind spot detection system plays a vital role in our safety and others. They are included in all of the vehicles. The more oversized vehicles like trucks, the are more important as there can be much bigger disasters in case of an accident. So, that is why we all should consider all of the advantages that the blind spot detection system tends to have. Neither is it difficult to install as anybody can do it by themselves. It provides the much-required additional support to the driver as the blind spots cannot be monitored directly. For a while, try to imagine the degree of convenience that it yields as it would be significantly easy for the driver to shift between road lanes as the blind spot detection system will be keeping him completely and utterly aware of the obstacles around him so that they can reach the desired destination safe and sound without falling prey towards any of the disastrous and unwanted circumstances. This is why the blind spot detection system should be at the top of our priority lists, as all of its functionalities revolve around the core idea of ensuring a safe journey for the driver.
