RV44 Blind Spot Terminal Radar and Vision Fusion
Do you know that blind spot detection systems are proven to be very impactful? A study by NIH found a considerable 14% decrease in lane-change accidents. Also, the same report suggests that about 50,000 crashes could have been prevented if every vehicle in the US were equipped with a blind spot terminal.
Our RV44 blind spot detection kit takes the traditional BSD system and upgrades it. It uses up to four sensors combined with cameras to provide both alerts and real-time vision. So, you can never miss any potential threat and ensure maximum safety.
How Does the RV44 Blind Spot Terminal Radar and Vision Fusion Work All in One?
The RV44 system eliminates the blind spot problem in vehicles. It provides a real-time vision of the areas that you can’t monitor manually. Additionally, it triggers alerts to keep you updated on your surroundings.
It is also important to remember that our RV44 blind spot terminal is a universal model. That means you can install it on pickup trucks, commercial, and specialized vehicles. Simply put, it is an all-in-one solution for all vehicles and drivers that struggle with blind spots.
How Can the RV44 Blind Spot Terminal Help?
The RV44 blind spot radar system can solve various problems that drivers face, especially with large vehicles. Here are some key features of our RV44 system:
Real-time Surveillance
Our system uses HD cameras to provide a real-time video feed of a vehicle’s blind spots. These wide-angle lenses cover a large area, so you can easily see all the minor and major details to identify potential threats.
Moreover, the screen also provides a display from all four cameras at once. You can view the output in a split-screen mode to track all four blind spots.
Radar Detection
The sensors complement the cameras and pair well with them. They provide an additional layer of safety to the driver. So, drivers can make the best use of visual and audible information to make better decisions and avoid challenging scenarios. Also, these sensors continue to work in situations where cameras might not be useful, like harsh weather conditions, dimly-lit environments, etc.
SD Card Integration
Do you want to record your journey? Generally, this is a demanding feature in fleet and logistics companies. Regardless, our RV44 blind spot terminal has the option to integrate an SD card of 64GB, 128GB, 256GB, etc. So, you can store videos, remove the SD card, and insert it into another device for future viewing.

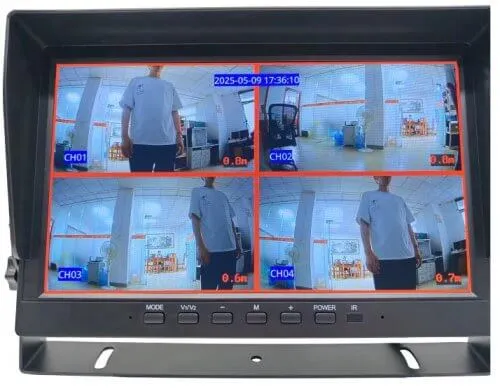

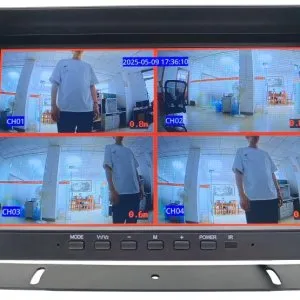

HD Display Screen
The HD screen makes it easy to view your surroundings in real-time. It displays the live footage that the cameras are capturing. Moreover, the screen also serves as the host that integrates a buzzer. It triggers audible alerts based on the results of the sensors.
Another thing to note is that our RV44 HD screen is also the control box of the system. Therefore, you can view and change all the settings from the host.
Specifications of the RV44 blind spot terminal radar and vision fusion all in one
Let’s discuss the technical specifications of our RV44 blind spot terminal and the accessories you get with it.
Technical Specifications
The following are the technical specifications of the RV44 BSD system:
| RV44 Blind Spot Terminal | Specifications |
| Operating system | Embedded Linux |
| Operating language | Chinese/English |
| Video format | PAL/NTSC |
| Operation interface | Graphical user interface |
| Video resolution | 720P/D1/HD1/CIF |
| Compression standard | H.264 |
| Audio compression | G.711A, G.711U, G.726-32K, G.726-40K |
| Recording mode | Synchronous recording of sound and
video |
| Video bit rate | 4096kbps for full frame, 8 levels of image quality |
| Audio bit rate | 8KB/s |
| SD card | 256GB (maximum) |
| Radar frequency band | 77 – 78GHz |
| Radar waterproof level | IP67 |
| Refresh rate | 33Hz |
| Number of transmit and receive channels | 2TX4RX |
| Distance resolution | 0.2M |
| Speed resolution | 1.9km/h |
| Speed range | ±60km/h |
| Detection distance | 0.2 – 40m |
| Elevation beamwidth (6dB) | -5~5° |
| Horizontal beam width (6dB) | -60°~60° |
| Operating voltage | 12-30V |
| Operating temperature | – 40~+85 |
| Full power consumption | 10W |

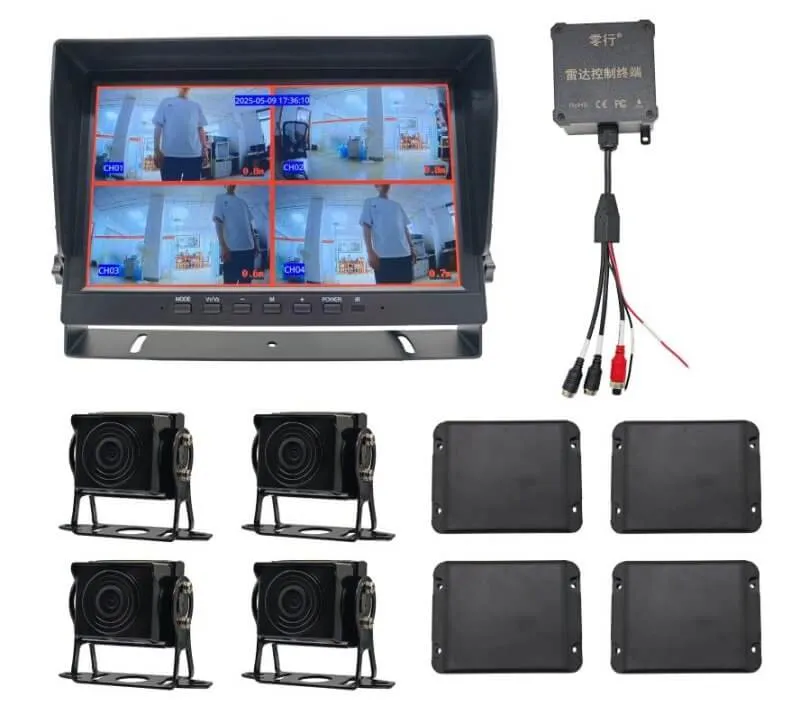

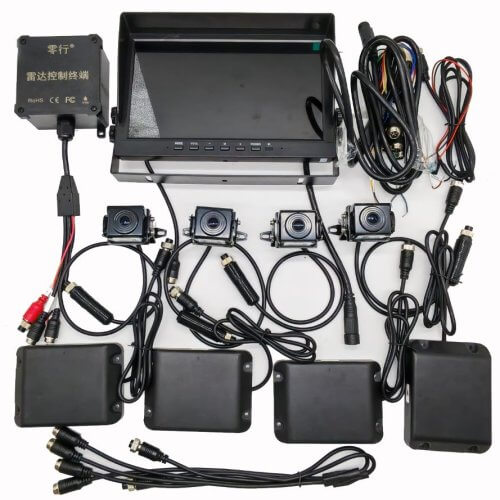

Accessories
Here’s everything you get with our RV44 BSD system:
| RV44 Blind Spot Terminal | Quantity |
| 77GHz Sensor(s) | Up to 4 |
| Camera | Up to 4 |
| Host HD display | 1 |
| Power cord | 1 |
| Radar extension | 1-4 (5m standard) / 10-15m (optional) |
| Camera cable extension | 1-4 (5m standard) / 10-15m (optional) |
| Radar cable | 1-4 |
| Mounting brackets | 1-4 |
| SD card | Optional |
| Accessory bag | 1 |
| Product manual | 1 |
Our RV44 blind spot radar system offers all the features you need to avoid accidents and make well-informed decisions. However, accident prevention is not the only thing it can help you with.
Here are all the main functions of our RV44 BSD system:

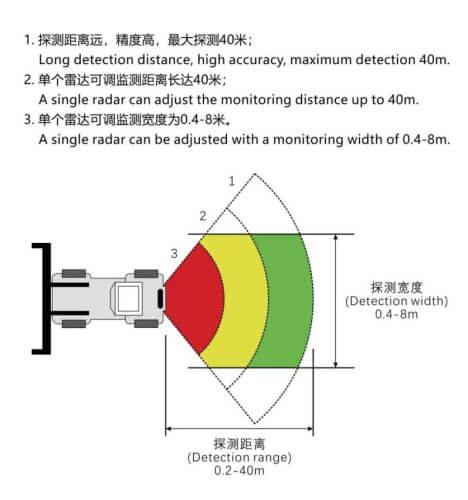

1. 3 Warning Levels
Our RV44 system has three different alert levels for accurate threat perception. Here’s how the 3 levels work:
- Level 1: The screen displays a green frame and shows the distance. This level starts when an object is farther from the vehicle. Also, the buzzers don’t trigger an audible warning at this stage.
- Level 2: It shows that the threat is getting nearer, triggering the buzzer sounds with larger intervals, and the screen turns yellow.
- Level 3: This stage highlights the urgency of action, creating longer buzzer sounds with minimal intervals. The screen turns red, so the driver can understand the threat intensity.
2. Radar Settings
The RV44 blind spot detection system allows you to customize it according to your preferences. You can set parameters for the warning levels and the distance. It allows you to set the 3 detection warnings depending on your driving habits and skills.
3. Open to Integration
You can decide the number of cameras or sensors to personalize your RV44 system. Let’s say you drive a smaller vehicle with only two blind spots. So, there’s no need for 4 cameras or sensors. Only two of these components will be enough for your vehicle.
Similarly, you can go up to four sensors or cameras if you have a larger vehicle with more prominent blind spots. Ultimately, the choice is yours!
4. Weather Resistance
The 77GHz radar sensors of our RV44 system remain effective in all weather conditions. They can even provide accurate alerts in extreme situations like a rainstorm. Moreover, these sensors and camera lenses are resistant to outdoor elements like dirt and debris. Thus, you can expect higher accuracy and reliability with our RV44 blind spot terminal.
Why You Should Choose Our RV44 Blind Spot Terminal
Don’t know where to buy the RV44 blind spot terminal? Look no further than OYI Electronic. Here are some reasons why you should choose us:
- We, at OYI Electronic, offer all our products, including the RV44 system, at factory prices. Moreover, we empower our customers for DIY installation, which further cuts down costs and
- Our team is always available to support you. Whether you have questions, need consultation, or want to discuss customization ideas, feel free to contact us.
- We provide after-sales support and flexible warranties to offer the best experience for our customers.
- The OYI Electronic team is ready to deliver online guidance to assist in product installation and maintenance.
- Our products are regularly restocked to ensure swift delivery for our customers.
- You can contact us through our website, phone number, or email. If you are in the area, feel free to visit our office.
Yes, four sensors and radars can seem overwhelming at first. However, the installation process is way easier than it seems. Here’s how to do it:
Cameras & Sensors
Our RV44 blind spot terminal eliminates the hassle of installing cameras and sensors individually. Instead, you can set them up in pairs.
However, there are a few things to consider before the installation:
- Clean the radar cover. Wipe it with a soft, damp cloth.
- After cleaning, let the air dry the cover naturally.
- Avoid squeezing or dropping the sensor to prevent damage.
Then, follow these steps for installation:
- Choose the installation location, preferably 0.5 to 1.5m high from the ground.
- Drill holes and set up the mounting brackets.
- Mount the radar sensors so that the triangle mark on the cover is pointed upward.
- Then, install the camera on the same surface as the radar sensors.
Note: Follow the numbers mentioned on the radar and sensors to pair them correctly.

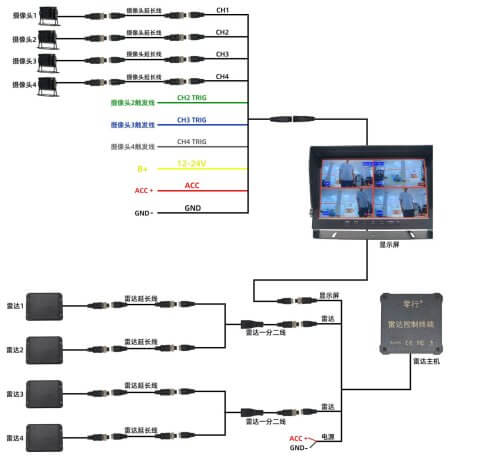

Display Screen & Wiring
- Mount the host/display screen on the vehicle’s dashboard.
- Connect the radar and camera cords.
- Next, link them all to the screen.
- Lastly, connect the power cord to the power source.
Pro-tip: Secure all wiring with electrical tape to keep everything organized.
Remember, the RV44 blind spot terminal can be a lifesaver, especially for drivers who work long hours. They can easily get distracted, feel drowsy, and make poor decisions that put their lives at risk. However, this system also works well for personal drivers. You can always choose the number of sensors and cameras to personalize the experience.
The initial cost can seem overwhelming at first. But let’s not forget the benefits of the blind spot detection kit. It provides more advantages in the long run, such as increased safety, improved blind spot awareness, enhanced driving skills, and more operational efficiency with fewer disruptions and sudden accident costs.
To conclude, investing in the RV44 system is a smart decision—one that can keep you safe and improve your driving ability. So, what are you waiting for? Give us a call or now message us and get a free price quote!
