K3-40 Truck Anti Collision System with monitor
Truck collisions have been on the rise over the last few years. A study shows an alarming 13% increase in just one year. Comparing it to the last decade, it is a whopping 49% spike in truck accidents. The leading causes? People ignore the large size of the vehicle, which makes it more challenging to maneuver than a car. The lack of awareness of the blind spot also contributes to the causes of these accidents.
But did you know the market is full of readily available solutions, like a K3-40 truck anti collision system? It can help truck drivers stay safe on the road, preventing crashes and promoting a better driving environment.
Working Mechanism of K3-40 Truck Anti Collision System with monitor

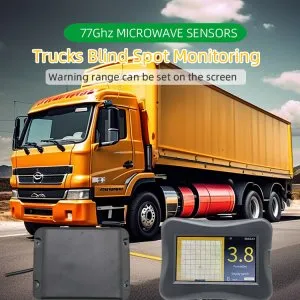

Minimizing your truck’s blind spots is an excellent idea. The K3-40 anti-collision system uses microwave sensors to cover the truck’s immediate front blind spot. It can help you monitor smaller vehicles like motorcycles to prevent accidents.
Our K3-40 truck anti collision system uses a medium-to-long range sensor. So, you can view vehicles or objects before reaching a critical distance. It empowers you to make well-informed decisions and avoid collisions.
Key Features of K3-40 Truck Anti Collision System
Here are some key features of our K3-40 collision avoidance system:

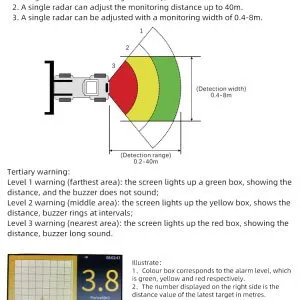

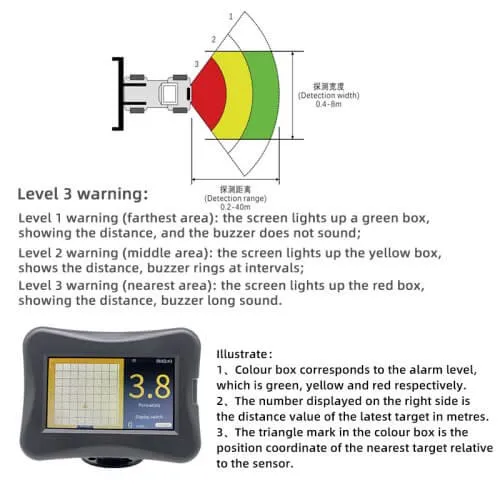

3 Alert Levels
Our truck anti collision system has three alert levels. If a vehicle is at a maximum of 5.0m from your truck, the screen will trigger green alerts. You will not get buzzers at this level since the distance is not critical yet.
However, the screen turns yellow and triggers buzzer alerts with intervals when the vehicle reaches a maximum distance of 3.0m. The last level begins when the distance gets as short as 1.0m. Here, you get long buzzer warnings with no intervals, indicating the scenario’s intensity.
These 3 levels make our pre collision system more user-friendly. It keeps you updated on your surroundings and changes warning intensity as the situation becomes more dangerous.
Versatile Applications

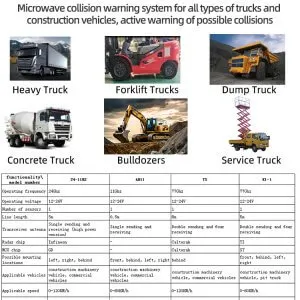

The K3-40’s versatility sets it apart from other anti-collision systems. It pairs well with various vehicles, including:
- Dump trucks
- Forklifts
- Commercial trucks
- Engineer cars

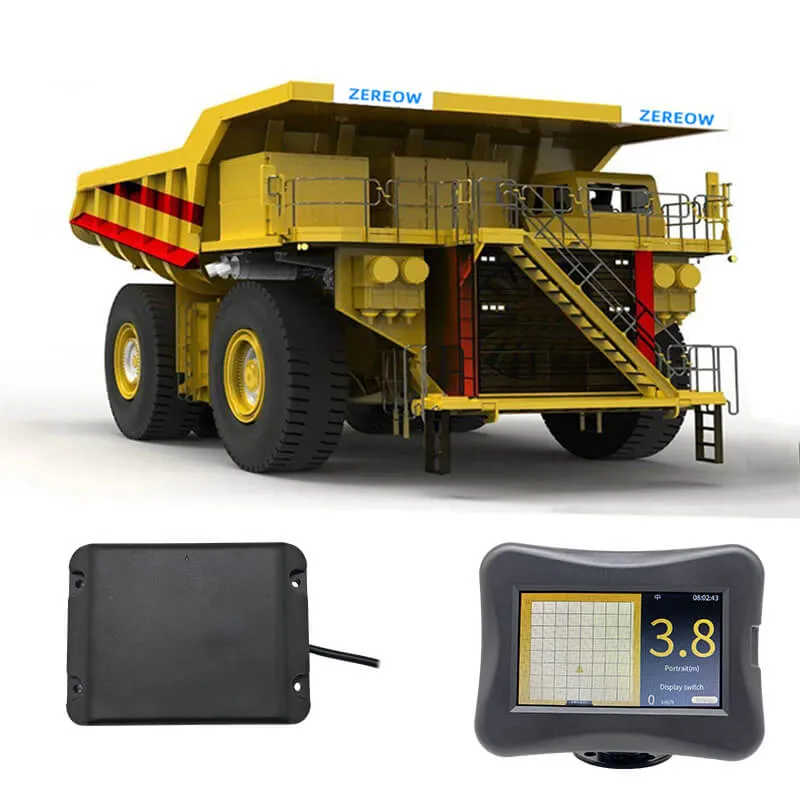

- Mining trucks
- Construction trucks
- Bulldozers
- Service trucks
This sensor-based system comes in with universal fitment. You can install it in all the above-mentioned vehicles without any extra requirements.
User-friendly Settings
Do you want to change the default maximum detection range for alert levels? You can easily do that with our K3-40 anti collision system for trucks. It lets you customize the system according to your preferences. So, it works just like you want it to!
Easy Installation, Usage, and Maintenance
The installation process of this system is quite straightforward. That’s because there’s only one sensor and a touch-screen control box. It also makes the system usage friendly for beginners and experienced users alike.
Another benefit of having minimal components is less frequent maintenance. Requiring less care and repairs keeps the truck anti collision system costs light on your pocket.
Let’s discuss the technical aspects of our K3-40 system and the accessories in the box to provide a clearer picture:

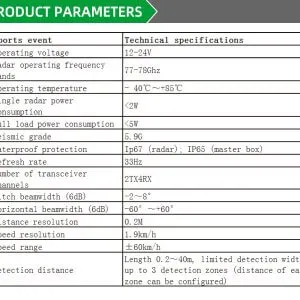

Technical Specifications
Here are all the technical details of our K3-40 anti-collision system for trucks:
| K3-40 Truck Anti Collision System | Specifications |
| Sensor operational frequency | 77Ghz |
| Sensor waterproof rating | IP67 |
| Refresh rate | 33Hz |
| Distance resolution | 0.2m |
| Speed resolution | ±60km/h |
| Detection range and levels | 3 levels (0.2~40m) |
| Horizontal beamwidth (6dB) | -60°~＋60° |
| Pitch beamwidth (6dB) | -5~5° |
| Operational voltage | 12-30V |
| Operational temperature | -40℃～+ 85℃ |
| Power consumption | ＜3W |
| Full load power consumption | ＜6W |

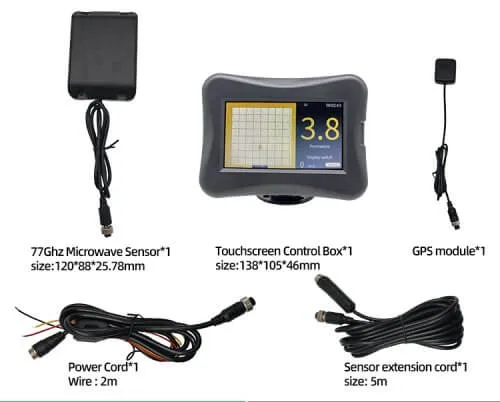

Accessories Included with K3-40 Truck Anti Collision System
Don’t worry about buying accessories separately for our K3-40 truck anti collision system. We provide all the essential equipment, including the following:
| K3-40 Truck Anti Collision System | Quantity |
| Sensor | 1 |
| Touchscreen control box | 1 |
| Power cord | 1 |
| Sensor extension cord | 1 |
| GPS module | 1 |
| TF card | Optional |
| Sensor mounting bracket | 1 |
| Product manual | 1 |
Having a collision avoidance system for trucks is always a plus point. It exponentially increases your and others’ safety, especially in workplaces. Our K3-40 truck anti-collision system is no exception. It saves you from accidents, protects your vehicle and more importantly, protect others.
But did you know it can do a lot more than that? Here are all of its functions that you should know:
1. Vehicle & Obstacle Detection
We understand that your workplace can also have manual workers and other obstacles. That’s why our K3-40 detects pedestrians and stationary objects in addition to nearby vehicles.

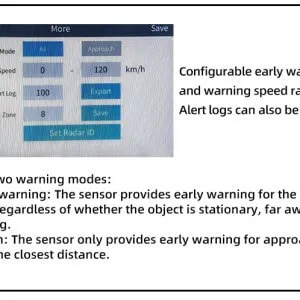

It has two alarm modes, Approach and All. Here’s how they work:
- Approach: It monitors the area to detect an oncoming vehicle in the truck’s vicinity that could cause collisions.
- All: This mode monitors all obstacles, including pedestrians, to ensure a safe environment.
The Approach mode is very helpful for commercial trucks driving on busy highways. Alternatively, the All mode helps keep your workplace safe, be it indoors or outdoors.
2. Export Log
Do you want to export the K3-40 system’s data? You can insert a TF card and download the recent warnings. The export log contains the warning date, time, speed, alert level, and vehicle distance.
It can help you waive off false accident disputes or legal proceedings. The export log works as evidence and can also be used to handle insurance company fraud.
3. GPS Calibration
We include a GPS module with our K3-40 pre collision system. The GPS works collaboratively with the sensors, adding time and location to your detection data. You can also customize the time settings to set it to the local zone. It is a complementary addition, especially in export logs.
4. Room for More Sensors
Want to add more sensors to your K3-40? No problem. The system sets the radar ID for additional sensors. It smoothens the communications between sensors and the touchscreen control box. You can add blind spot or rear-cross traffic alert sensors to increase your truck’s protection.
Why Choose Our K3-40 Truck Anti Collision System
Our K3-40 sets itself apart from other sensor-based systems with its functionality, ease of use, and rich features. But here’s what makes us different from other manufacturers:
- We provide optional equipment included with the K3-40 system on the customer’s demand. That includes various TF cards, microphone add-ons, etc.
- Do you need the K3-40 system for your business? We can provide customized packaging to tailor the system for your company.
- There’s no need to opt for professional installation for our systems. You can ask us for online guidance and follow the detailed instruction manual for DIY installation.
- Worried about false alarms in the K3-40 truck anti collision system? We have maintained a 98% success rate, guaranteeing maximum accuracy.
- Make your purchase budget-friendly with our affordable, factory prices and no extra costs.
- Want to consult before purchasing? Well, you can always contact us via live chat, phone number, or email.
Don’t get overwhelmed after seeing the K3-40 components and accessories. The installation is easier than it looks. Here’s what to do:
Step 1: Mounting the Sensor
The sensor installation can vary depending on your vehicle’s build and body. However, here are some universal steps to follow:
- Choose a location on your truck, typically 0.5-1.5m from the ground.
- Next, clean the sensor’s body and the selected mounting location.
- Drill holes in the proposed location and mount the sensor’s bracket.
- Now, place the sensor on the bracket.
There’s a triangle drawn on the front of the sensor. If it is on the top, you have installed the sensor correctly. Otherwise, rotate it upward before fixing the position.
Step 2: Control Box & Connections
The control box typically sits on your truck’s dashboard. Here’s how to connect it to the sensor:
- Connect the power cord to the sensor’s port present below the GPS module port.
- Similarly, route the GPS module cord to the sensor and plug it in.
- Route both cables and connect them to the control box.
- Link the control box to your truck’s power source.
Step 3: Finalization
Now, all your components are in their place, connected, and ready to go. But, here are a few things to do before finalizing the installation:
- Make sure the cables are properly connected in their appropriate ports.
- See if any obstructions to the sensors exist that could block the waves’ pathway.
- Lastly, test the system to ensure all components function correctly.
Ready to improve your driving journey with our K3-40 truck anti collision system? We highly recommend following the product manual to ensure proper installation. Facing any problem? Feel free to contact us and ask for guidance. Our customer service team works around the clock and operates via different channels, including phone, email, live chat, etc.
Also, use the system in your driveway to see the results. It is better to get the hang of it before using it on a busy highway. That said, the usage method is quite simple and automated. It requires minimal driver input, so you can understand its framework in a drive or two.
Do you want to add more features or components to your K3-40? We are here to customize any driving assistant system to your needs. Contact us today for consultation or to discuss customization ideas and get a free price quote!
