LD11 Car DVR 3 in 1 Vision Parking Sensor Camera with Recorder
Parking a car can be quite challenging, especially in modern urban environments. Usually, parking zones are jam-packed with small and large vehicles, making it difficult for drivers to find the right space for parking. And, blocked vision adds to it. Despite how well you adjust your side-view and rearview mirror, seeing all the nearby obstacles is practically impossible.
However, you can solve this simply by adding a parking sensor. You can improve your rear view with this sensor. Combine this useful tool with the evergreen functionality of a dash cam, and you have the LD11 car 3 in 1 system. Let’s take a detailed look at this one-stop solution.
What to Know About LD11 3 in 1 Car DVR

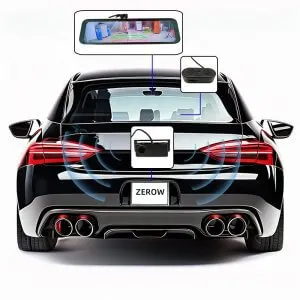

Recently, the automotive market has seen a surge in advanced driving assistance systems. They provide added security and safety to a car, and the LD11 car DVR is no exception. It combines the best of parking sensors, vehicle cameras, and dash cam to provide an all-in-one solution.
Having trouble parking your car? You can use the parking assistance of this car camera. Alternatively, you can switch to the recording mode to capture moments on the road. These features help you avoid installing multiple systems in your car. Traditionally, you would have needed a separate car camera, parking sensor, and dash cam to perform all the functions of this LD11 car system.
What Can You Do with LD11 3 in 1 Car DVR?
Here are the primary features of the LD11 3 in 1 car DVR:
Reverse Camera

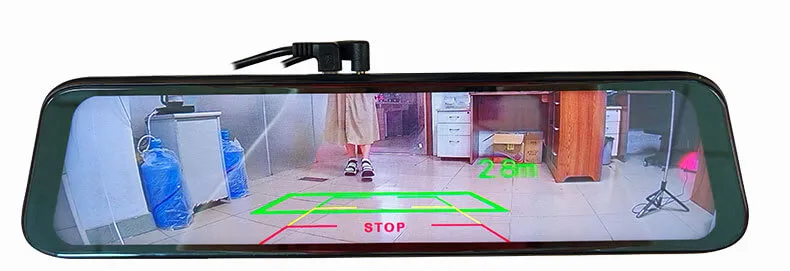

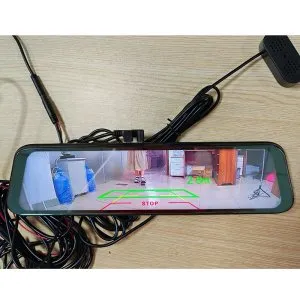

Parking and reversing out of a parking area is no longer a problem. You can always check your surroundings in the reverse camera of this car DVR system. The best part? You can also record the footage for later viewing.
Record Footage
Recording events on the road has several benefits. You can get the upper hand over false insurance claims and legal proceedings. Our LD11 car system offers a crystal-clear video quality of 1080p. So, you can capture even the minute details of the road.
Real-time Streaming
One of the best features of the LD11 car system is its real-time video streaming. It lets you view the footage as the camera is recording. This way, it is easier to configure the video settings and get the best result in recorded footage.
Less Clutter
Having an additional screen in the system can cause clutter in the car interior. It gets overwhelming to manage all these new components, especially for a new driver. That is why LD11 offers a sleek screen that mounts on your existing rear-view mirror.
Decent Detection Range

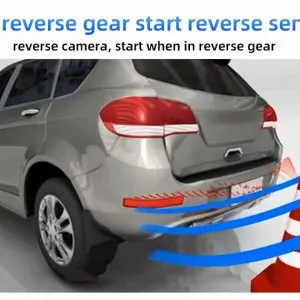

In addition, the system’s parking sensor offers a vertical and horizontal detection range of up to 90 cm from your car. So, if there’s an obstacle in this distance, the system will alert the driver with a buzzer warning. This way, you can avoid nearby objects, poles, parked vehicles, etc.

Let us tell you the technical details and the accessories you get with the LD11 car 3-in-1 vision parking sensor camera.
Technical Specifications of LD11 Car DVR 3 in 1 Vision Parking Sensor Camera

Here are all the technical specifications of our LD11 car DVR:
| Sensor | Operating Band | 9.9~10.5GHz |
| Measuring Accuracy | 0.1m | |
| Detection Distance | 3m | |
| Horizontal Angle | 165° | |
| Vertical Angle | 105° | |
| camera | Video Format | Pal/Ntsc |
| Resolution | 1920×1080/1280×720/CVBS | |
| Frame Rate | 25/30fps | |
| Output Video Signal | AHD | |
| Rated Operating Voltage | 5v~12v/12v~24vDC | |
| Rated Operating Current | 5V/350mA 12V/160mA ±10mA | |
| Image Quality Assurance Temperature | -30℃~60℃ | |
| Storage Temperature | -30℃~75℃ | |
| Humidity | 90%RH | |
| Noise Reduction Methods | 3D noise reduction | |
| 2 in 1 | Waterproof Rating | IP67 |
| Connector | 4 PIN Airline header |

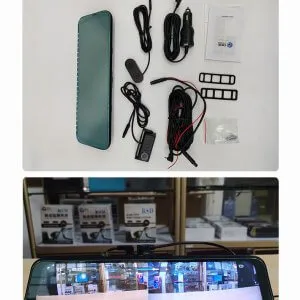

Accessories Included in the Box with LD11 Car DVR

Here’s everything that comes in the box with our LD11 dash cam for cars:
| Product name | vehicle traveling data recorder |
| Product Features | HD camera, HD video. |
| Display | HD display |
| display sizes | 12-inch |
| Camera lens | 170-degree A+ high resolution ultra wide angle lens |
| Language | Russia,Japan, France,Italy, Germany,West, English,Chinese(Simplified),
Chinese(numerous) |
| File format | Korean,etc. |
| Video resolution | AVI |
| Video format | Maximum 1080P |
| Loop video | M-JPEG |
| Switch machine | Seamless video, no leakage |
| Mobile detection | Support auto ignition startup, shutdown flameout |
| function | Support |
| Days and days | Support |
| Photographic mode | 500 pixels |
| Photo format | JPEG |
| Memory card | TF (maximum 32GB) |
| Microphone | Support |
| Buflt in stereo | Support |
| Video format | PAL/NTSC |
| Current frequency | 50HZ/60HZ |
| USB function | 1: USB-Disk 2:PC camera |
| Power supply interface | 5V/1A |
| Battery | Built-in battery |
An LD11 car camera can solve multiple parking and driving problems. Plus, it is cost-effective, eliminating the need for several advanced driving assistance systems. Let’s talk about why it is an excellent replacement for traditional ADAS.

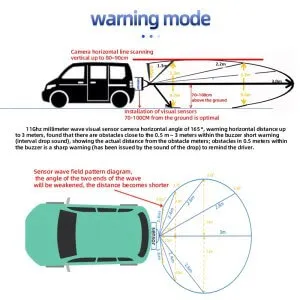

1. 4-Level Detection
The LD11 parking sensor operates on four different levels. For instance, if the other vehicle is at a 2m to 3m distance, you will get shorter buzzer warnings. Alternatively, you may opt for interval alerts if the other vehicle is 1m to 2m away.
The system sends sharp alerts if the vehicle gets closer to your car at a distance of 0.5 to 1m. If this distance decreases further, the sensor sends longer buzzer warnings. These different levels help a driver understand the severity and intensity of a potential threat. So, they can take the necessary steps and avoid a collision.

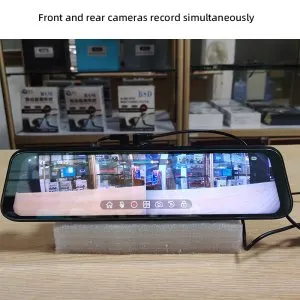

2. Split-Screen Display
The system utilizes two cameras like most modern dash cameras. One records the forward area, while the other helps avoid rear collisions. The best part? You can record and view from both cameras simultaneously. Our LD11 car DVR offers a split-screen video mode. It can help you keep an eye on both parts of the road.
3. Loop Recording
Loop recording has become an essential feature in dash cameras, especially modern ones. Our LD11 car dash camera is no exception. It allows longer footage to be recorded without storage interruptions.
In many situations, the driver can not stop to customize the dash cam settings. That is especially true on busy highways with more traffic. In such scenarios, loop recording are convenient as it automatically overwrites the oldest video recordings in the memory.
4. Parking Assistance
You can always rely on our system’s parking sensor to carefully navigate through crowded parking spaces. It becomes easier as the system offers 4 levels of detection. What’s better is that you don’t have to use the sensor alone. You can pair it with the reverse camera to get buzzer warnings and clear vision for seamless parking!
5. Environment Adaptability
Our LD11 car dash cameras are comparatively smarter than many ADAS. They are more adaptable considering the environmental conditions. Their cameras and sensors are waterproof, meaning they operate efficiently in rain, snow, and fog. Additionally, the cameras also resist moisture, thanks to their thermal camera lenses.
Another feature of these cameras is their lighting adaptability. Whether you are driving during the day or night, the lens can automatically adjust its brightness level. This way, your footage remains properly-lit and easy to view.

Why Should You Buy Our LD11 Car DVR?
The advanced functionality of the LD11 car DVR makes it stand out in the market. But do you know that you get some extra perks if you buy from us? Let us explain!
- We offer customization options for all our systems, including the LD11 car dash cam. So, you can tailor the features or packaging to meet your needs!
- There’s no need to go after high prices. We, at OYI Electronic, offer LD11 car systems at factory prices.
- Our customer support team works around the clock to provide 24/7 assistance. You can contact us via email, phone number, or live chat. Moreover, you can visit our office for after-sales support.
- We encourage customers to install the systems in their car DIY. That is why all our packages come with an in-depth product manual.
- All of our sensor-based systems, including LD11, are tested in competitive scenarios. That is how we have maintained our 98% success rate over the years.
Installation Of LD11 Car DVR System
Now, it’s time to install the LD11 dash cam for the car. Follow the steps below to set up each component effortlessly:

Reverse Camera & Sensors
The reverse camera and sensors are usually paired together. Here’s how to install it:
- Measure the size and placement of the reverse camera.
- Drill holes in the rear bumper slightly above the license plate according to the camera/sensor size.
- Place the mounting bracket in the drilled holes.
- Mount the camera/sensor with its face outside.

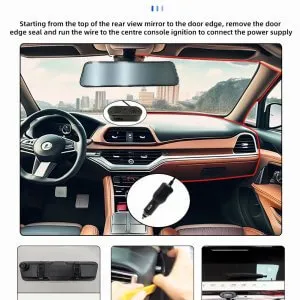

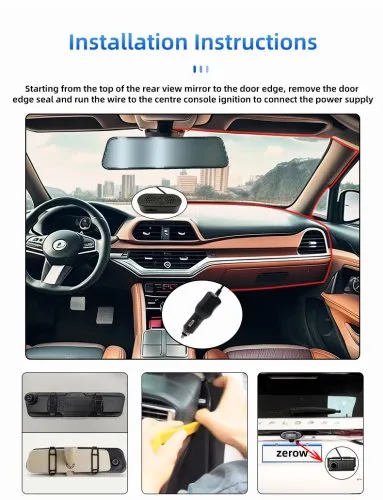

Front Camera & Display Unit
The front camera is installed behind the display unit. It is the easiest to install in any car. Here’s how to do it:
- Remove your existing rear-view mirror.
- Use the mounting bracket to mount the display unit with the front-facing camera.
- Lastly, adjust the camera to get optimal vision.

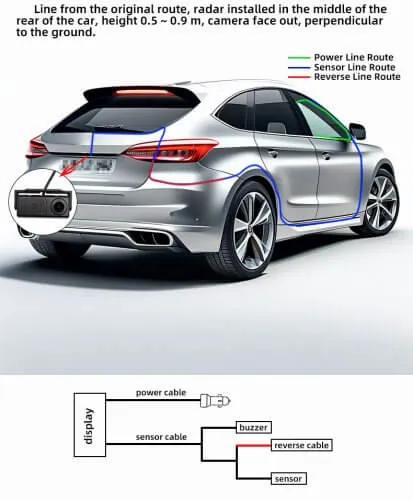

How to Connect the Cables?
You get various cables and extension cords with your system. Remember, you don’t have to use all of them. Follow these steps to carefully install the cables:
- The display unit connects with the power cord.
- Link the reverse cable and sensor with the buzzer.
- Now, connect the buzzer to the sensor cable of the display unit.
The LD11 car DVR can be an excellent addition to your car, not to mention the system is pretty flexible and compatible. You can install it in popular cars like Ford, Porsche, BMW, Range Rover, Volo, Lancer Loader, etc. So, regardless of your current car model and brand, you can buy this system.
What’s even better about the LD11 car camera is its rich features. Also, this system provides all the essential features in a single place, so you can save your extra bucks and get an all-in-one LD11 system.
Do you have any questions about the system? No worries! We provide installation guidance and after-sales support. Additionally, you can contact us if you are facing a specific problem. Our supportive and reliable warranty covers everything you need from an automotive company.
Contact us today and get a free price quote!
