Car blind spot monitoring 77G H3

Working a 77G H3 car blind spot information system is simple. Our product package has a 77Ghz millimeter wave radar, two indicator lights, a buzzer, a host box, and a connecting harness. All these components work collectively for the proper functioning of the system. The complete mechanism of working of a 77G H3 blind spot car detection system is as follows:

Display
Speaker

Complete Guide Of A 77G H3 Car blind spot information system

“Speeding thrills but kills.” – A true proverb indeed. But, do you know what the greater danger is? The reckless driving! Every day numerous cars merge into other vehicles because of careless drivers. Therefore, A driver must monitor every inch of the road for safety.

The question arises; how would drivers monitor the surroundings around them? Well, they can’t, at least not on their own, and that’s a fact. The reason is the design of every car. The metal pillars around the drivers make it impossible to examine the car round, making the driver vulnerable to crashes.

car blind spot information system 77G H3

There is a solution to this problem! And it is not a complicated and expensive one. Yet, a simple, budget-friendly, and effective fix. Every car has a different design, but the solution remains the same throughout the car variants; the car blind spot information system. It’s a driving assistance system everyone needs. This system monitors the spots that a driver cannot reach. Moreover, it warns the driving individual if a target object enters the detection area. So, the driver becomes cautious, saving the car from any possible collision.

How Does A 77G H3 Car Blind Spot Information System Work?

Working a 77G H3 car blind spot information system is simple. Our product package has a 77Ghz millimeter wave radar, two indicator lights, a buzzer, a host box, and a connecting harness. All these components work collectively for the proper functioning of the system. The complete mechanism of working of a 77G H3 blind spot car detection system is as follows:

Working Principle Of A 77G H3 car blind spot information system:

The system performs two main functions. One is detecting the target object, and the other is warning the driver about them. The millimeter wave radar accurately detects the objects. At the same time, the warning lights and buzzer collectively warn the driver about the risk.

A 77Ghz millimeter wave radar emits the wave signals. Any vehicle in the range of these signals creates a disturbance, and this interference helps the car blind spot sensor detect the respective object. After the detection, it is up to the car blind spot information system to judge whether the object is a threat to the car or not. For practical judgment, it accurately measures the target car’s speed, angle, and relative displacement.car blind spot information system 77G H3

Once the system marks the target as a potential risk, the system issues a first or second-level alarm to warn the driver.

  • First level alarm: In this warning mode, the warning light will stay on without the involvement of a buzzer.
  • Second level alarm: The warning indicator light flashes, and the buzzer sounds.

The 77GHz millimeter wave radar can detect 64 objects simultaneously within a 50-meter radius. For that reason, we label it as the most efficient and accurate car blind spot information system.

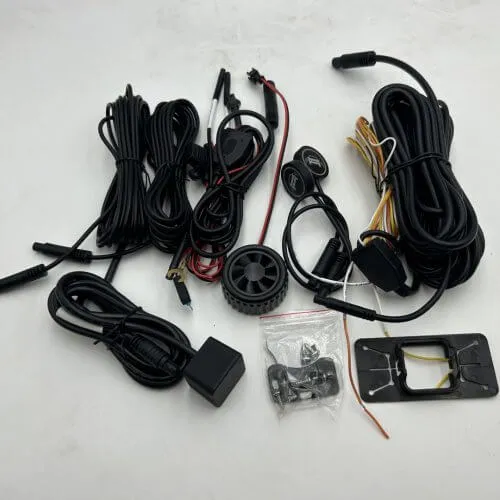

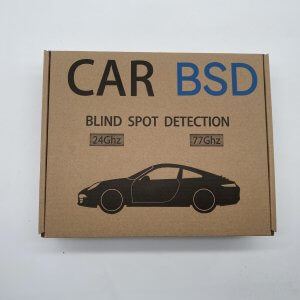

Product List Of 77G H3 Car Blind Spot Information System:

car blind spot information system 77G H3 car blind spot information system 77G H3 car blind spot information system 77G H3

Name Quantity
77Ghz millimeter wave radar 1

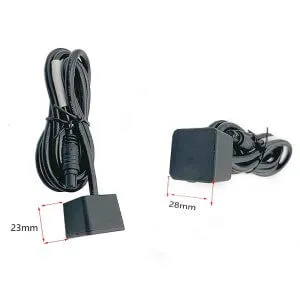

In-car warning light 2
Power cord 1
Buzzer 1
Power extension line 1
Indication lamp extension line 2
Radar box 1
Installing support 1
Accessories package 1
Instructions 1

Technical specifications of 77G H3 Car Blind Spot Information System:

Project Specifications
Operating voltage 9 V- 32 V
Operating frequency band 77 -79Ghz
Working temperature – 25℃ ~ +75℃
Power consumption < 3 W
Waterproof grade Ip 67
Distance resolution 0 . 2 m
Ranging accuracy It is better than 0. 1 m.
Detection range 0-50 m
Horizontal angle range 150°
Pitch angle range ±10°
Velocity measurement accuracy 0.1m/s

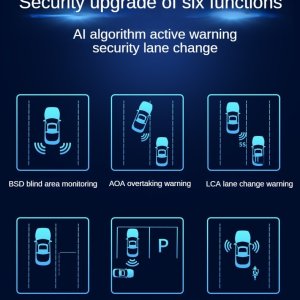

What Are The Functions Of the 77G H3 Car Blind Spot Information System?

Usual blind spot systems perform the same basic functions of detection and alerting. However, the 77G H3 car blind spot information system goes another step further with the additional distinctive features. The features like self-inspection, BSD, LCA, and RCW help our product be unique in the market. It is better to know how all these functions work, which will help the owner get the most out of the system.

Once the ACC powers on, the system will immediately turn on. Moreover, if the driver turns the ignition off, the radar stops working. The system is always in first-level early alarm mode, except when the driver switches on the turn signal lamp or engages with the reverse R gear and double flashing warning lights.

Product Self Inspection:

Once you install the car blind spot information system in your car, it becomes a vital part of your every journey. So, it is essential to check whether the system is working normally or not before jumping on the road. Our 77G H3 blind spot system has this ability, making it optimum for every car. The system gives different indications at different states of the system as follows.

Normal State Of The Car Blind Spot Information System:

  1. After powering on the vehicle, the left and right indicator lights flash 3 times.
  2. When the car speed exceeds 15km/h with an object in its detection area, the system will alert the driver accordingly. If you turn to prepare for a lane change,At this state, indicator lights will start flashing, and Steering signal trigger the steering buzzer will make a sound.

Both of these signs guarantee the proper functioning of the system.

Abnormal State Of The Car Blind Spot Information System:

  1. If the left and right indicator lamps flash once, it indicates that the control box is normal and the radar is abnormal.
  2. As the radar is not working properly, the indicator light will always stay off. To fix the error, check whether the power-on signal works correctly or not.

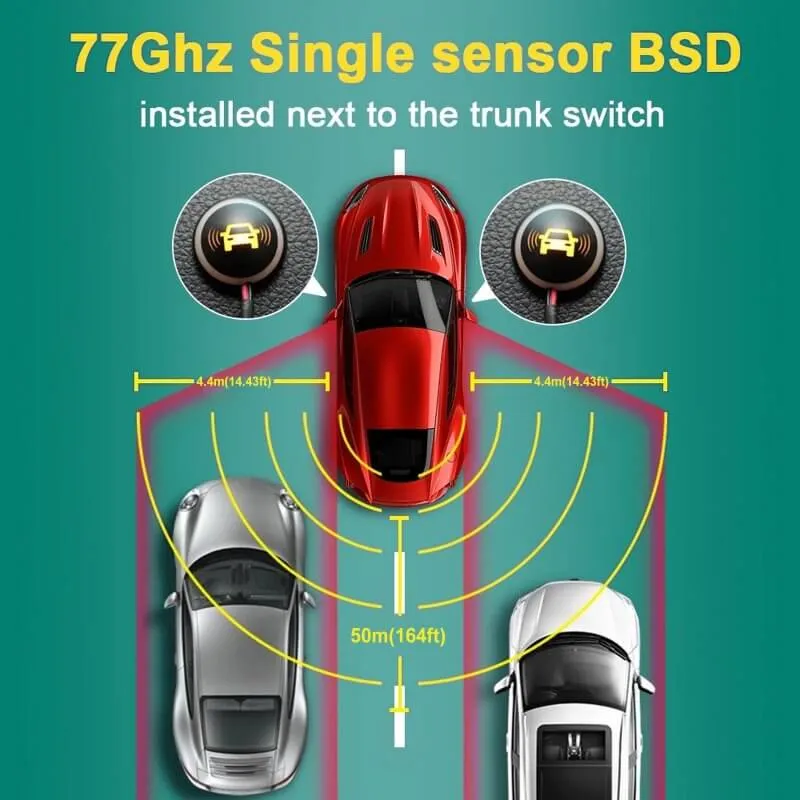

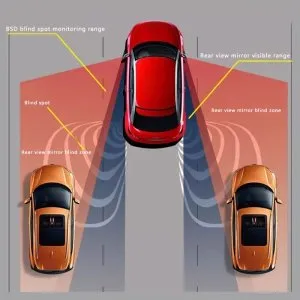

Blind Area Monitoring Function (BSD):

The car blind spot information system will start functioning when the vehicle speed is ≥15Km/h. The detection range of the system for BSD is different than other features. Its horizontal range is 1.5m≤X≤4.4m,-4.4m ≤ x ≤-1.6m. However, the longitudinal range is 0 m≤Y≤6.5m

Blind Spot Warning Modes Of Car Blind Spot Information System:

  1. The system will give a first-class alarm when detecting the target object, while the car does not switch the turn signal on. Once the object leaves the area, the system will cancel the alarm.
  2. If the driver switches on the turn signal lamp while an object is in the detection area, the system issues a second class alarm. Once the object leaves the alarm area, the system will cancel the warning alarm.

The BSD feature of the car blind spot information system helps in active and passive overtaking. But, the relative overtaking speed must not be more than 20km/h.

Parallel Auxillary Approach (LCA):

This system helps the driver in active lane changing. It warns the driver early about the object in the adjacent lane. In LCA parallel auxiliary feature, the system adopts an early warning strategy. So, it alerts the driver when the approach time of the vehicle is ≤ 4.0 seconds.

The function starts once the car’s speed is ≥15Km/h. 1.5m≤X≤4.4m,-4.4m ≤ x ≤-1.6m, and 0m < y ≤ 50m are the horizontal and longitudinal ranges of early warning LCA.

LCA Modes of A 77G H3 Car Blind Spot Information System:

car blind spot information system 77G H3

  • When the target enters the alarm area and the driver does not switch on th
    e turn signal, the car blind spot information system issues a first-class alarm, which gets canceled once the object leaves the area.
  • When the target enters the signal range, and while the turn signal is switched on, the system issues a second-class alarm until the object leaves the area.

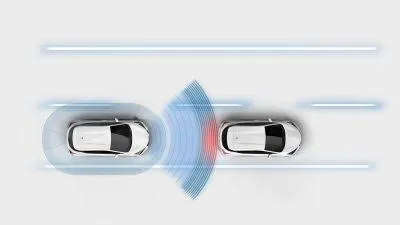

Rear Collision Warning Function (RCW):

car blind spot information system 77G H3

In RCW, the car blind spot information system warns the driver about the approaching object in the lane directly behind the vehicle. Both left and right LED lights flash to alert the driver, helping to react quickly.

The feature starts when the car speed is ≥2Km/h. The horizontal range of early warning is -1.6m ≤ x ≤ 1.6m. In comparison, the longitudinal range of the detection area is 10m < y ≤ 50m. In the early warning strategy of the RCW function, the minimum vehicle approach time is ≤ 1.5s.

What Is The 77G H3 Car Blind Spot Information System Installation Procedure?

car blind spot information system 77G H3

The installation procedure of our car blind spot information system is simple. However, it is a sensitive process that requires extreme care. That is why it is better to follow instructions for the system’s proper functioning.

Wire Connection Of 77G H3 Car Blind Spot Information System:

car blind spot information system 77G H3

  1. Connection method of power cord:
  1. Connect the black line of the power cord to the negative pole of the car or ground it.
  2. Connect the red line of the power cord to the ACC power supply of the car.
  3. Correspond the extension line of the reminder lamp and the lamp extension according to the left and right labels. Connect the male and female connectors.
  4. Connection method of power extension cord:

Route the power extension cord from the front of the car to the rear of the vehicle. Plug the front of the car into the power cord. And plug the vehicle’s rear into the radar mainframe’s box line.

  1. Main box wire link method:
  • Plug the special plug of the host box into the host box.
  • Plug the 6Pin hole end plug and power extension cord oppositely.
  • Plug the 5 pin-end plug and radar cables into each other.
  • Connect the yellow line to the positive pole of the left turn signal lamp.
  • Connect the orange line to the positive pole of the right turn signal lamp.
  • Connect the white cable to the positive pole of the reversing lamp.

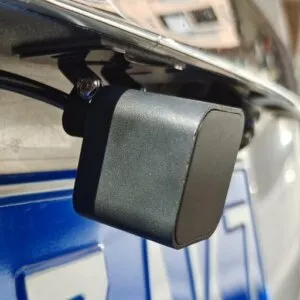

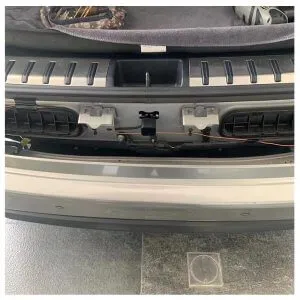

Radar Installation Of A 77G H3 Car Blind Spot Information System:

  • The height of radar while installation must be 0.4 to 1.1m from the ground.
  • Make sure for the pitch angle the radar plane dips 10±2°
  • The angle between the radar axis plane and the car body axis plane must be 0±1.5.

car blind spot information system 77G H3 car blind spot information system 77G H3

Make sure the outlet is on the top.

Radar inclination adjustment method of car blind spot information system:

car blind spot information system 77G H3

  1. For horizontal adjustment, the radar should be parallel to the cro
  2. ss-section of the car body. Also, the bracket can be parallel to the cross surface of the rear license plate.
  3. For pitch angle adjustment, download the mobile app “level .”Attach the mobile phone to the radar head and tilt the radar head downward. When the vertical angleon the APP is 10°, tighten the fixing screw to mount the radar at the fixed angle.

What Is The Method To Use The Host Box Of A 77G H3 Car Blind Spot Information System?

Our 77G H3 car blind spot information system has a built-in control box. Therefore, it minimizes the fuss of adjusting the radar height and angle. Moreover, the driver has complete control of the buzzer volume. So, with the flip of a switch, you can mute or enhance the buzzer sound.

The most suitable place for the control box is the car’s rear. This makes it absolute for the installation, fixing, and routing. The tabular Instructions for the use of the control box dip switch are as follows:

Function Control switch Encode Definition
Adjust height 1 and 2 00 0.85m
01 1.1m
10 0.6m
11 0.4m
Default 0.85m
Angle 3,4, and 5 000
001
010
011 -1°
100 -2°
Default
Lateral offset 6 and 7 00 The center of the car is 0.25m to the right.
01 Center of car
10 The center of the car is 0.25m to the left.
Default The center of the car is 0.25m to the right.
car blind spot information system 77G H3
Buzzer Volume Adjustment:
Function Control switch Encode Definition
Buzzer 1, 2, and 3 000 Mute
001 Turn down the volume.
010 Medium volume
100 Loud volume
Default Mute

Every advanced vehicle has a built-in car blind spot information system nowadays. For that reason, the overall rate of accidents keeps reducing with every passing day. If a few pennies can ensure your safety on the road, that’s a pretty good deal for sure!

It’s better to buy your blind spot monitoring system from a credible firm. The one that assures error-free product experience with rigorous testing. Nonetheless, that’s what we do! Give us a call right now and get the car blind spot information system specifically designed for your car.
