Camera Monitor System (CMS) TF108 MSV25
Camera Monitor System (CMS) truck/bus rear view mirror
Over 800,000 blind spot accidents occur every year. The worst part? These accidents cause over 300 fatalities, making them deadly. Larger vehicles, like trucks, have blind spots on all four sides. But one deadly position is between the truck’s immediate front and right—the passenger-side blind spot. This blind spot is such a threat that it is frequently called “the danger zone.” Plus, the height of the driver’s cabin makes it even worse to view smaller vehicles like a motorcycle.
Luckily, we have just the solution to fix this specific problem. Our camera monitor system actively captures your truck’s immediate front and right blind spots. You can track the live stream on a screen to make well-informed decisions, especially when changing lanes or turning.
Working of Camera Monitor System (CMS)
Now, you can eliminate the passenger-side blind spot in your truck with our CMS. It uses a weather-proof camera with an HD lens to monitor your truck’s immediate front and right corners.
Also, there’s no need to worry about the driver cabin’s height anymore. The camera is installed at a height enough to detect even smaller vehicles, like a car, in front of the truck. Our high-resolution screen sits on the truck’s dashboard for increased driver accessibility. So, you can easily view the live footage and avoid situations that lead to collisions.
How Does the Camera Monitor System Help?
Here are some important features of our CMS:
Real-time Camera Coverage

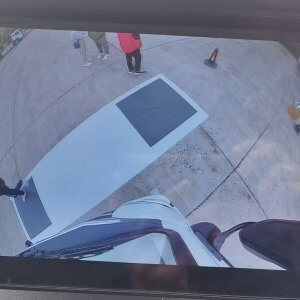

Having a real-time vision of your truck’s passenger blind spot can prevent major accidents. Our system offers a camera that captures and provides live footage on the screen. So, the driver can view their surroundings better than a traditional side-view mirror.
This monitoring is highly helpful for all large vehicles, including engineer cars, trucks, forklifts, etc. Generally, these vehicles are more challenging to maneuver during turns and lane changes. However, camera recording and real-time video output provide the driver with the much-needed vision to navigate with care.
Decent Area Coverage
Our camera monitor system for truck has a 2m range from the passenger side. It is more than enough to view any oncoming vehicles, pedestrians, or objects in your proximity. The best part? There’s no need to find the optimal camera angle, which is an issue in many camera-based systems.
Easy Installation
Say goodbye to paying hefty charges just for the installation process. There’s no need to hire a professional to install our camera monitor system. In fact, we empower our customers for DIY installation with an in-depth product manual and online guidance, making it a cost-effective purchase.
Minimal Components
Having more components in a system requires regular care and maintenance. Also, the chances of system failure are exponentially higher since every part is integral. Our monitoring system uses only two primary components; the camera and screen. It makes the system maintenance less frequent and more budget-friendly.
Versatile Usage
Whether you are a road truck driver or drive specialized vehicles in outdoor work environments, you can use our camera monitor system automotive. It is a universal model for various large vehicles, making it usable for daily and work requirements alike.
Want to know the technical details of our camera monitor? Here are the detailed specifications of the system and accessories you get with it:
Technical Specifications
The following are the technical specifications of the camera:
| Camera Monitor System | Specifications |
| Camera model | MSV25-20EM |
| Detection range | 2m |
| Weatherproof rating | IP69K |
| Sensitivity | 0.01 Lux/F1.2 |
| Recording resolution | 1920 (H) x 1080 (V) |
| Lens | f1.8mm Megapixel |
| Video Output | 1 Vp-p, 75Ω, AHD |
| Screen model | TF108-02AHD |
| Screen resolution | 1024(H) ×600(V) |
| Brightness | 600cd/m² |
| Video Input | AHD 1080P/720P/CVBS |
| Screen System | PAL/NTSC/AUTO |
| Supported languages | English, Chinese |
| Power Supply | 12V DC±10% |
| Power Consumption | 130mA (Max) |
| Operating Temperature | -30° C ~ +70 ° C |
Accessories Included with the Camera Monitor System
Here’s everything you get in your camera monitor system package:
| Camera Monitor System | Quantity |
| Camera lens | 1 |
| Screen | 1 |
| Video cord | 1 |
| Mounting bracket | 1 |
| Remote control | 1 |
| Instruction Manual | 1 |
The passenger-side blind spot is definitely a problem that needs an immediate solution. Our CMS provides live coverage to fix this issue. The driver can track their vicinity to make better decisions.
But that’s not all our system does. Here are all the functions you get in our camera monitor:
1. Weather Resistance
Do you frequently drive in rainy environments? Well, there’s no need to worry. Our camera has a waterproof rating of IP69K, making it completely weather-resistant. The camera offers crystal-clear video footage during rain, snow, and fog. Also, the lens doesn’t get affected by moisture and other outdoor elements.
2. Remote Control Function
Are you new to using driving assistant systems? Our camera-based monitor is the perfect start as it functions via a remote control. It is also included in the package and offers buttons for Power, Video Select, Menu, Mode Select, etc.
3. Microphone Integration
Having audio output with video is always a plus point. We integrate a discreet yet powerful microphone into our system to offer audio with the live footage. Also, our camera provides a 3D noise reduction feature, meaning it will only capture necessary sounds and block distortions. This additional benefit can make a truck safer with multiple output channels.
4. Open to Integration
Do you want to have more eyes on the road? Our system gives you the freedom to customize the number of cameras. You can add more lenses on the driver’s side, rear-view, etc. Combine that with the passenger-side camera, and your truck is now more secure than ever!
Why Should You Choose Our Camera Monitor System?
The market is full of different companies offering different camera systems. However, here’s what makes us stand out from the crowd:
- Our camera systems are well-tested in competitive scenarios to ensure functionality without errors. That is why OYI Electronic has managed to maintain its 98% success rate throughout the years.
- Get the most durable camera monitors from us at factory prices. Yes, we don’t charge the extra intermediary prices, making our systems very budget-friendly.
- Don’t have technical experience? Let us guide you online with our team of experts on installation, maintenance, and any other problems you face.
- Never face the “out of stock” problem anymore. We regularly restock our products to ensure swift purchase and delivery.
- You can customize the system with us according to your requirements, like a microphone add-on, personalized packaging, etc.
- We provide support via several channels to ensure our customers never face any problems. You can contact us via our website, email, phone number, or visit our office!
Let’s start unboxing your CMS. Don’t get overwhelmed by the components. Follow this guide for quick and error-free installation:
The Camera
Let’s start by setting up the camera as it is the most integral part of the system.

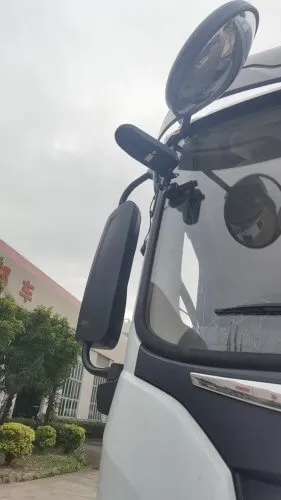

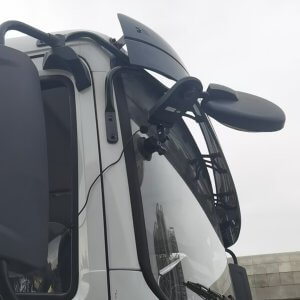

- Choose the mounting location on your truck’s driver cabin. The ideal height for optimal coverage is between 2.4m and 3.3m depending on your vehicle type.
- Now, use the anti-loosening nuts to fix the hexagonal screws through the adapter.
- Adjust the camera angle until it looks the same as in the product manual.
- Lastly, tighten the screws and ensure the camera is firmly mounted.
The Screen

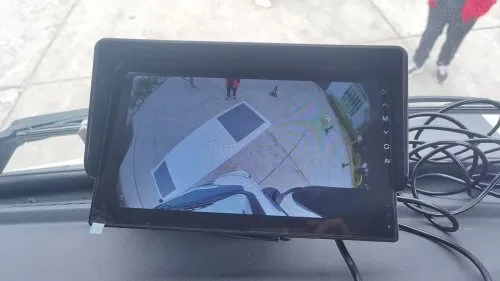

The screen sits on the dashboard or can be mounted. Here’s how:
- You can choose a desktop-mounted bracket to place your screen on the dashboard. Alternatively, a ceiling-mounted bracket will fix the screen at a specific height.
- Next, check the screen is firmly attached to the mounted bracket to prevent falling.
Cables
Connecting the cables can be overwhelming at first. However, the instruction manual illustrates and guides how to link the system. The system uses a 4-pin connector to link all the components. Here’s a brief overview:
- Connect the camera/video cable to the video port.
- If you have the microphone integration, connect it to the audio port.
- Next, you have the output/power port. Link it to your truck’s power source.
- Lastly, you have the GND (Ground) port for circuit functionality and compliance.
Testing
Once the installation is done, it’s time to test the system. Here’s what you need to do:
- Turn on the system using the remote control to see all the cables are connected correctly.
- Use the monitor controls to change and view different settings.
- Test all the remote control functions to check the connectivity.
- Last, try the system in your driveway before heading to a busy area.
You don’t have to get nervous when maneuvering through the passenger-side blind spot anymore. Our CMS can fix this problem by providing a real-time view of your surroundings. In the long term, it makes you a better driver by increasing your blind spot awareness. Hence, it is a cost-effective investment worth doing.
Speaking of costs, you can make the purchase more budget-friendly with a few tweaks. Avoid hiring a professional and opt for DIY installation. You can also customize the system according to your needs to fit your budget. Plus, purchase from OYI Electronic at factory price to eliminate middlemen costs.
So, what are you waiting for? Contact OYI Electronic now to customize the best camera monitor system and get a free price quote. We will also provide you with a supportive warranty with your purchase to ensure you get the best deal in your limited budget.
