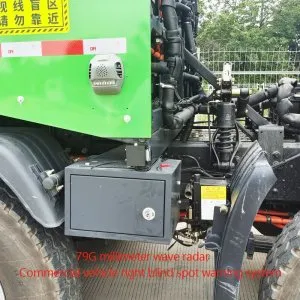

79G_01R install project
blind spot detection system for trucks

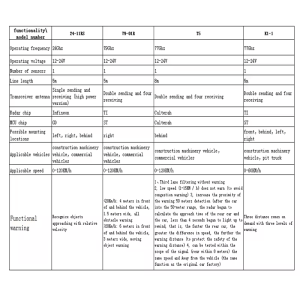

heavy vehicles microware sensor comparison list

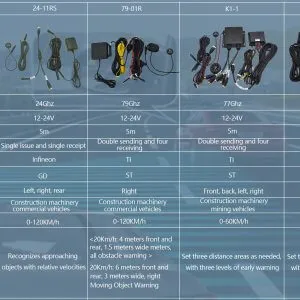

Truck sensor radar compare list

Truck blind spot detection 79G 01R

The right blind spot of a truck is the largest and most dangerous blind spot of a truck. For that reason, our firm came up with a solution. Our 79G ZR79-01R right blind spot detection system for trucks actively monitors the right blind spots of a truck. It is a driving assistance system that detects any risky target object and warns the driver about them. The in-vehicle warning indicator lamp and buzzer sound make the driver more cautious towards the surroundings.

Noted: 79G 01R stopped and updated to 79G 02, the function is the same, the old item is only for the right side, and a new item can right or left side blind spot detection by setting.



Display
Speaker

A–Z Guide Of A 79G ZR79-01R Right Blind Spot Detection System For Trucks

blind spot detection system for trucks

Commercial trucks are longer and more massive than cars. Therefore, these are said to be more risky vehicles to drive. Operating a longer vehicle on the road with more blind spots is much more difficult. So, being a truck driver is a tough job. Every year thousands of truck accidents are seen across the road. Sometimes, the truck rolls over, and sometimes a rear collision takes place. Most of the time, the massive blind spot on the right side of a commercial vehicle causes crashes. So, it is vital to look for a solution, and that is where the blind spot detection system for trucks comes in.

Before understanding how a blind spot detection system for trucks makes drivers safe, it’s better to observe how blind spots endanger our lives.

What Are The Blind Spots Of A Truck And How Do They Endanger The Driver?

Every vehicle design has some spots invisible to the driver’s eyes. The same is the case for trucks. All the spots of a truck that a driver cannot physically monitor are its blind spots. Therefore, as the commercial truck is longer, it tends to have more and larger blind spots. For that reason, there is a great need for a special assistance system to monitor these zones. Some of the dangerous blind spots of a truck are as follows:

Directly In Front Of A Truck:

A driver is continuously looking forward while driving. Therefore, people don’t usually consider the truck’s front a dangerous blind spot. However, the story is completely opposite; it is one of the most dangerous ones. If the vehicle is up to an adequate distance in front of the truck, it’s not a driver’s problem. But, once it reaches the area of 3m to 8m from the truck’s front bumper, it becomes completely invisible to the driver. That is why the prescribed area is a complete no-zone for vehicles on the road.

Direct Rear Of A Truck:

blind spot detection system for trucks

While parking or reversing the vehicle, drivers must observe the truck’s rear side to avoid an accidental collision. Most commercial trucks carry metal containers on the back. Thus, it blocks the way and makes it impossible for the driver to monitor the truck’s rear portion. For that reason, drivers use a blind spot system to keep a better track of the background.

Drivers Side Of A Truck; The Left Side:

There is no doubt that side mirrors on the driver’s side make it easy to monitor the road. However, some spots are still far behind the left adjacent lanes that a driver cannot monitor. These spots are also hazardous for the driver and cause an unintentional collision while reckless lane changing.

Passenger Side Of A Commercial Truck; The Right Side:

The truck’s right side is the largest and most dangerous blind spot in a vehicle. Because the driver is far away from the side mirrors and right window, that causes difficulty in monitoring the zones. That is why right-side collisions make up the majority of commercial truck accident stats. While changing a lane or taking a turn, the truck becomes vulnerable to possible collisions as any risky object can never be seen by the driver. So, it could cause extreme damage to both; the vehicle and the driver.

What Is A 79G ZR79-01R Right Blind Spot Detection System For Trucks?

right side blind spot detection system for trucksThe right blind spot of a truck is the largest and most dangerous blind spot of a truck. For that reason, our firm came up with a solution. Our 79G ZR79-01R right blind spot detection system for trucks actively monitors the right blind spots of a truck. It is a driving assistance system that detects any risky target object and warns the driver about them. The in-vehicle warning indicator lamp and buzzer sound make the driver more cautious towards the surroundings.

Working Principle Of A 79G ZR79-01R Right Blind Spot Detection System For Trucks:

right side blind spot detection system for trucks

Our blind spot detection system for trucks has a 76GHz to 81GHz millimeter wave radar for detection of the objects. The radar can actively detect objects up to 0.2m to 3.5m horizontally and -7m ~ 7m vertically. For accurate detection, the radar emits wave signals colliding with the objects. After the collision, the signals bounce back, and radar receives the signal for precise measurement.

After the detection, the blind spot detection system for trucks instantly alerts the driver about the risk. In-vehicle indicator lamp blinks, and the buzzer prompts a sound. So this warns the driver to take precautionary measures. Moreover, a cautious driver ensures the vehicle and road individual safety.blind spot detection system for trucks

The 79G ZR79-01R right blind spot detection system for trucks has a millimeter wave radar that works on a frequency band of 79GHz. As the frequency is extremely high, the penetration of wave signals increases essentially. So, the system works ideally in fierce weather conditions of smoke, dust fog, and rainstorms.

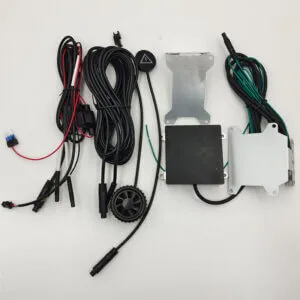

Product List Of A 79G ZR79-01R Right Blind Spot Detection System For Trucks:

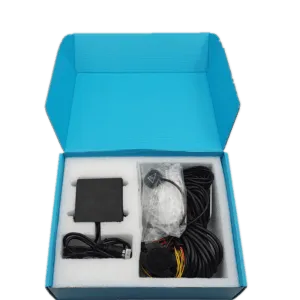

The package of a 79G ZR79-01R right blind spot detection system for trucks has all the important contents. Therefore, our complete package helps the drivers install the system with ease.

blind spot detection system for trucks blind spot detection system for trucks right side blind spot detection system for trucks

No. Name Quantity
01 79Ghz millimeter wave radar One piece
02 Warning lights in the vehicle One piece
03 Buzzer and wire One set
04 Manual One piece
05 Bracket and accessories package One set

Technical Specifications Of A 79G ZR79-01R Right Blind Spot Detection System For Trucks System:

The technical parameters of a blind spot detection system for trucks directly affect its functionality. So, every blind spot system has specific technical specialties according to its distinctive features. Prime technical specifications of our 79G ZR79-01R blind spot monitor are as follows.

S/N Item Specification
01 Operating Voltage 12—24 V
02 Operating Frequency 76-81Ghz
03 Operating Temperature – 40℃ ~ + 85℃
04 Power Consumption < 5W
05 Waterproof Level Ip 67
06 Distance Resolution 0 . 5 m
07 Measuring Accuracy 0.1 m
08 Detection Range ● High-speed mode: 0.2 ~ 3.5 meters in the horizontal direction, -7 ~ 7 meters in the vertical direction;

● Low-speed mode: 0.2 ~ 1.5 meters in the horizontal direction, -7 ~ 7 meters in the vertical direction;

What Are The Functions And Working Modes Of 79G ZR79-01R Blind Spot Detection System For Trucks?

Functions:

The value a blind spot detection system for trucks offers the driver depends on its features. So, an ideal blind spot detection system will have all the essential features. Our truck’s blind spot sensor system has several premium functions. These functions accurately detect objects and effectively warns the driver. Therefore, it makes our product stand out in the crowd of contenders. Some of the prime functions of a 79G ZR79-01R right blind spot detection system for trucks system are as follows:

Immediate Start:

The 79G ZR79-01R blind spot detection system for trucks turns on right after the vehicle powers on. After turning on, the self-inspection light turns on for a second and then goes out. It is an indication that the system is working properly without any failure. So, the driver can start driving with its assistance.

Broad Detection Area:

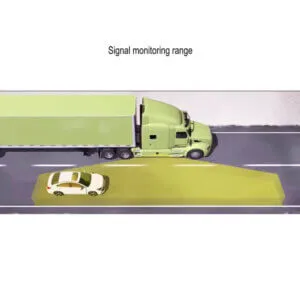

right blind spot detection system for trucksOur blind spot can detect objects 0.2 to 3.5 meters horizontally, 7 meters forward, and 7 meters backward vertically at a 150° angle. So, the 79G ZR79-01R blind spot detection system for trucks has a huge right-side detection area. Now, if an object enters this detection area, the radar detects it and indicates the driver. As a result, this stops the driver from taking a turn or changing lanes to prevent unintentional merging.

Working Modes:

There are two working modes of a 79G ZR79-01R blind spot detection system for trucks:

Low speed mode:

This speed mode stays on only in the speed range of 0 to 18 km/h. If the vehicle is on the road at a speed of 0 to 18km/h, the blind spot detection system for trucks will detect every object in the alarm area. In simple words, the driver will see the indication alarm even if the object is stationary.

High Speed Mode:

This speed mode turns on when the truck’s speed exceeds 18km/h. At this speed, the system warns the driver about every moving object with a speed of more than 10km/h.

In these warning modes, the blind spot detection system for trucks initiates two types of warning modes, according to the conditions.

  1. The indicator light always turns on if the turn signal indicator lamp is off.
  2. If the right turn signal is on, the indicator lamp starts flashing, and the buzzer starts beeping as well. However, the buzzer only beeps once for a single indication.

What Is The 79G ZR79-01R Blind Spot Detection System For Trucks Installation Procedure?

There are two main steps of installing a 79G ZR79-01R right blind spot detection system for trucks. The first one is the radar installation, and the second one is the wire connection. Both these steps are crucial for the proper working of a truck blind spot detection system. If the driver does not mount the radar accordingly, the system may face errors in accurate detection. At the same time, any carelessness in the wire connection can lead to complete failure of the blind spot detection system for trucks. General instructions for installation to make your blind spot detection system completely functional are as follows:

Radar Installation:

right side blind spot detection system for trucks
  1. Make sure the radar you mount is 0.6 to 1.2 meters above the ground.
  2. The radar of the blind spot detection system for trucks must be parallel to the vehicle body.
  3. You can tilt the millimeter radar 0 to 5 degrees toward the vehicle’s rear. It will not affect the forward detection distance. However, it can increase the backward detection distance of the radar.
  4. Make sure the radar outlet is facing downwards.
  5. As the radar is present on the outside of the body, make sure no metal objects are blocking the radar signal.

Wire connection:

blind spot detection system for trucks

  1. Connect the Red or main wire harness with the vehicle’s ACC power.
  2. Ground the Black wire of the main wire harness.
  3. Connect the radar sensor cable extension with the main wire harness plug.
  4. Stick the in-vehicle warning light and the buzzer inside the truck.

How Much Does Blind Spot Detection System For Trucks Cost?

Every truck’s blind spot sensor system varies in its frequency band, detection range, and operating voltage. Therefore, it supplies different functionality to truck drivers. As a result, the price also changes with the change in the blind spot detection system.

The price of a blind spot detection system for trucks with 24GHz will differ from a system with a 79GHz band. Moreover, the accuracy in detection and way of warning the driver also impacts the cost of a truck’s blind spot system.

Installation of a blind spot detection system for trucks is also an impactful factor for the price. Simple installation requires low effort work. That is why drivers can install the system themselves and ditch the installation cost. Whereas, for the complicated installation procedure, the driver must look for an experienced worker for proper installation of the system

An ideal commercial blind spot detection system for trucks can cost you around US$150 to US$350, depending on the detection range and features. However, the installation of a truck driver can cost a driver around $200 to $250.

Considering the length and number of blind spots in a commercial truck, the blind spot system becomes a vital necessity. A right blind spot sensor system minimizes the risks of collisions by active monitoring and alerting. However, a driver should never entirely rely on a blind spot detection system for trucks only. This system is only here to assist you while driving.

If you are looking to buy one blind spot detection system for trucks, our company might be the best fit for you. Because of our rigorous testing procedure and technical manufacturing strategy, we assure you that our products are free from faults. Give us a call and get the truck blind spot detection system for your vehicle!
