Truck drivers have it the worst when it comes to the rear blind spot. It is a no-zone that obstructs the trucker’s view and leads to accidents. This problem is not only apparent in driving, but also in reversing or parking a truck. While traditional rear-view and side-view mirrors can help, it is often limited.
The automotive industries have seen a rise in digital mirrors because of the increasing number of truck accidents caused by the blocked rear view. But how do these mirrors help a truck driver? More importantly, should you buy them? Let’s find out!
Types of Digital Mirrors for Trucks
It is important to understand the types of digital mirrors available in the market and how each can solve a unique problem.

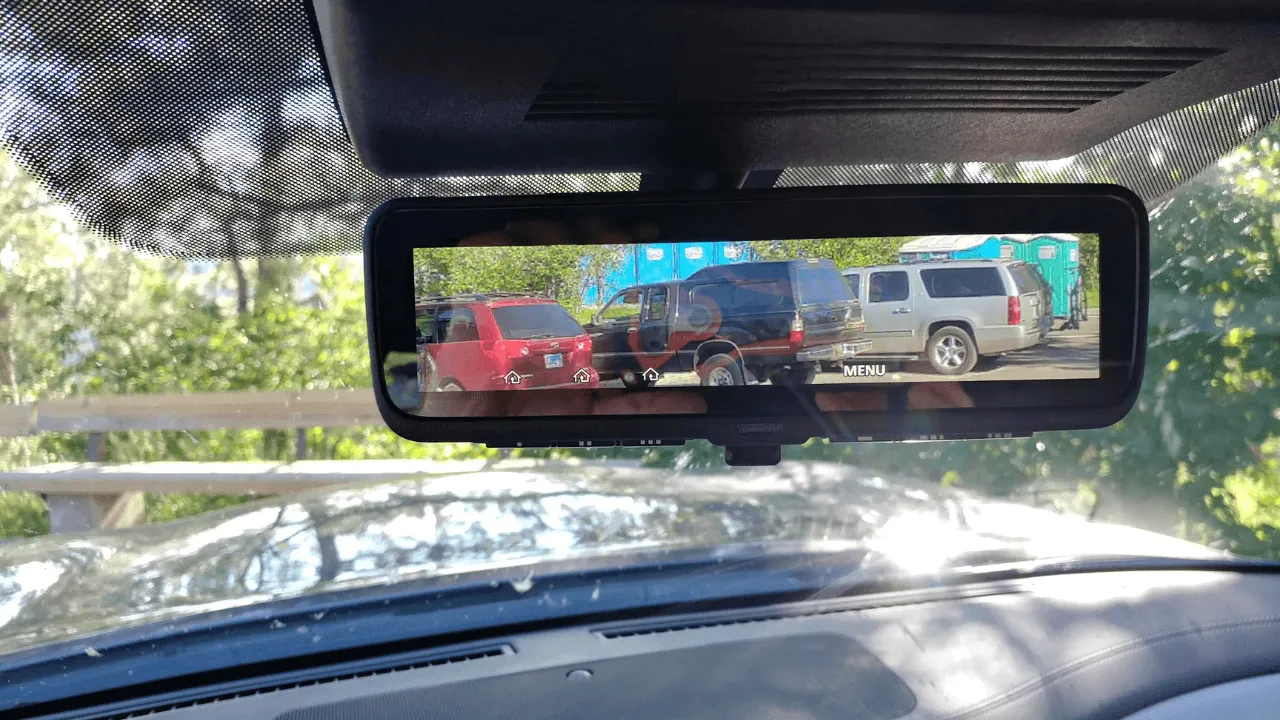

Digital Rear View Mirror
The most common type of digital mirror truck is for rear view. It eliminates the truck’s blind spot problem caused by its large size and build. This mirror type uses a camera, mounted above the truck’s license plate or on the gate.
The camera provides real-time streaming on a display unit. Like a traditional mirror, it also offers essential camera functions, including low-light vision, auto-brightness adjustment, etc.
Since this system relies on only two components, it is easy to install. You can also find a wireless rear-view digital mirror system. So, you don’t have to worry about managing cables, extensions, and power cords. Speaking of power, these systems use batteries or connect to the truck’s power source to run.

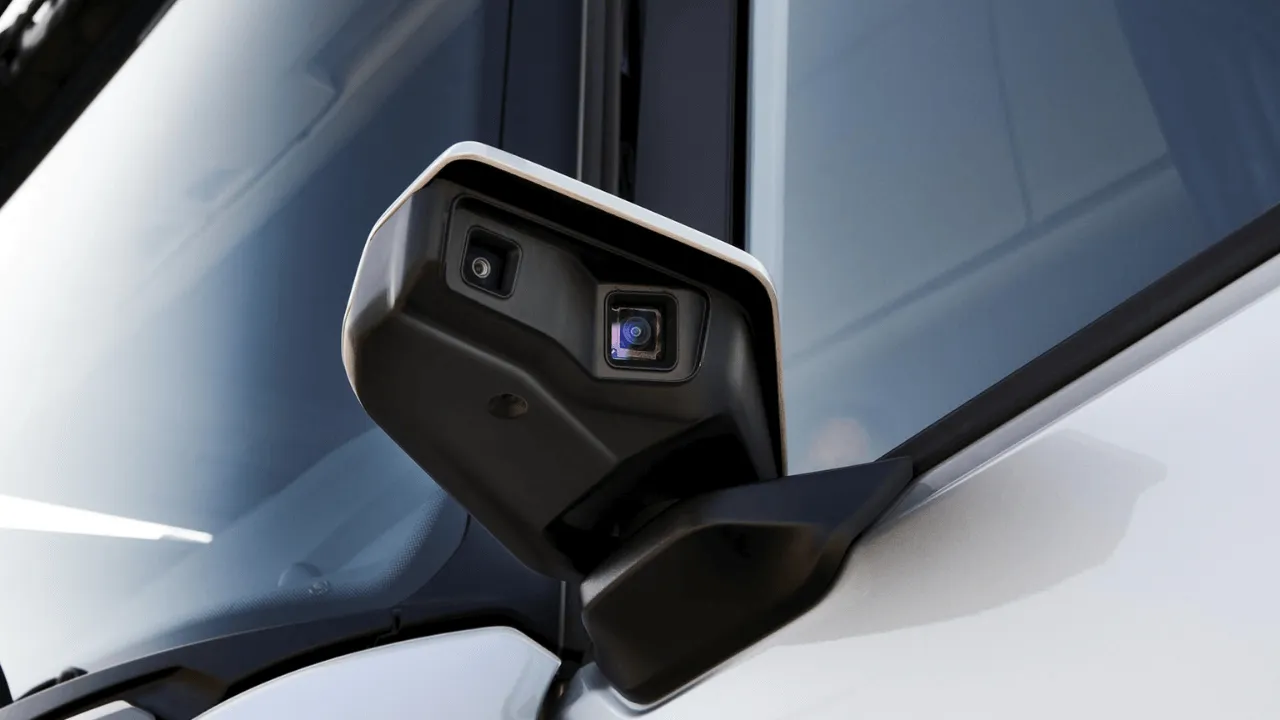

Digital Side View Mirror
Digital side-view mirrors have recently become popular for their advanced functionality and sleek design. You can find them pre-installed in modern trucks or retrofit them with aftermarket variations.
A digital side-view mirror works pretty much the same as its rear-view counterpart. However, there’s one difference, the camera position. In a side-view setup, the small camera lens is installed directly below the side-view mirror. It provides a more discreet design, making the camera nearly impossible to notice.
The side-view mirror functions as the display unit for the camera. It shows the real-time footage as it is being captured by the lens. In some older models, the display unit sits near the truck’s A-pillar or on the dashboard. However, newer models have replaced this structure by making vertical screens that are mounted in place of your existing side-view mirrors.

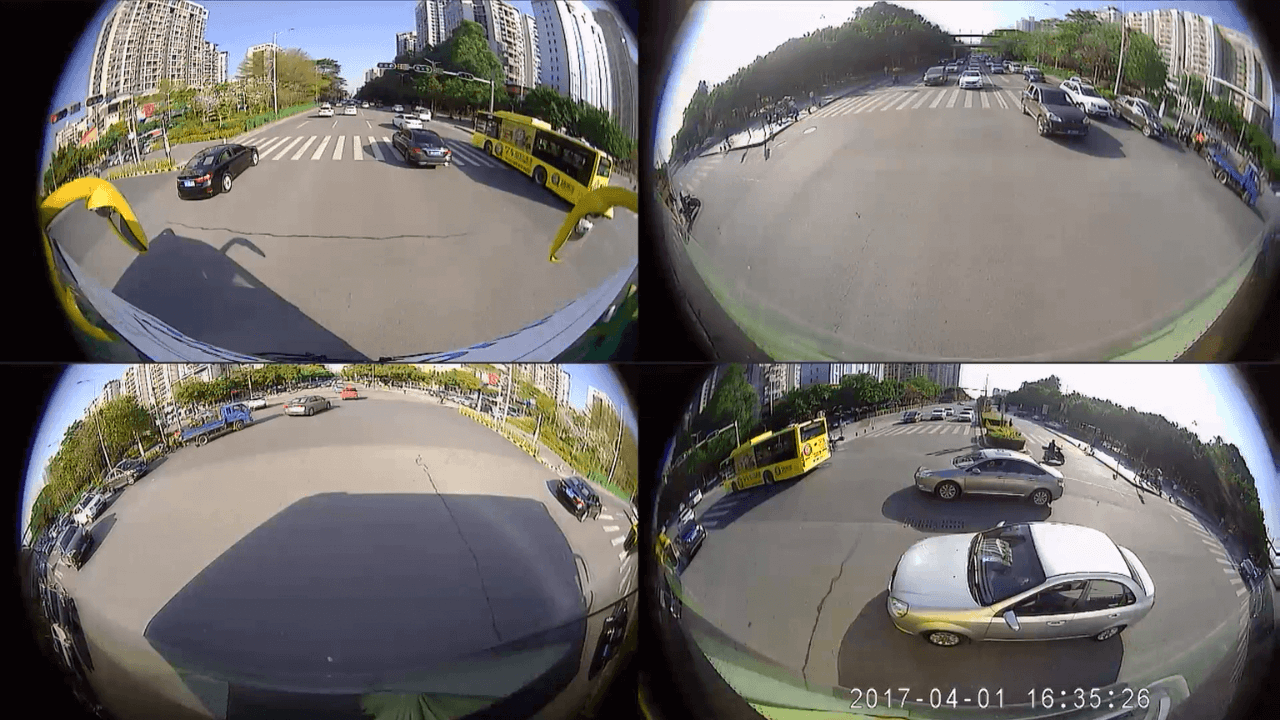

Full Surround View Digital Mirror
This type uses multiple cameras placed strategically around the truck, minimizing all four blind spots. A surround-view digital mirror is also known as a 360-degree camera system because of its extra pair of eyes.
Although this system has four cameras, there’s only one screen. The screen usually replaces your truck’s existing rear-view mirror. It provides real-time footage from all four cameras in a split-screen mode. However, you can switch to a single-camera view, depending on the situation.
Smart Digital Mirror
A smart digital mirror is a broad category in itself. It includes all modern digital or electric mirrors with integrated safety features and advanced driving assistance systems.
For instance, many digital mirror cars and trucks include a sensor for blind spot detection. It provides an additional layer of protection, offering audible warnings with a visual real-time display.
Similarly, many other types of mirrors integrate AR (Augmented Reality) sensors to help with parking and reversing. The sensor creates gridlines and assists drivers in navigating tight spaces safely.
Adaptive mirrors also fall into this category. They don’t use any camera or sensor but offer other smart features. For example, these mirrors can change their orientation, zoom in/out, and adjust brightness based on the environment.
How Digital Mirror Can Be Useful for Truck Drivers?
A digital mirror, regardless of its type, helps truck drivers in many ways. Let’s look at its importance and usefulness in detail:
1. Real-time Video Streaming
Most digital or electric mirrors are camera-based, offering live video streaming. It helps monitor your rear or side blind spots in real time. While traditional mirrors also provide real-time vision, an electric mirror upgrades this function.
It can provide night vision for driving in low-light conditions, like night-time. Additionally, you can view multiple cameras simultaneously, monitoring all four blind spots live. These functions help you drive in different conditions and make informed decisions.
2. Broader Point of View
A digital rear-view or side-view mirror increases a driver’s vision and awareness. These mirrors have a smart design to monitor a broader area than traditional mirrors.
Additionally, the camera lenses of digital mirror systems offer a wider point of view. The 360-degree camera system takes this feature one step further. It eliminates all blind spots, minimizing the chances of accidents.
3. Weather Resistance
Traditional side-view and rear-view mirrors can accumulate dirt, debris, or fog. In extremely cold weather, these mirrors can also get frozen, blocking the driver’s vision.
However, smart mirrors are immune to these problems, thanks to the thermal technology and slip surface. The automatic heating undoes the frosting process due to snow and cold. Similarly, the slippery surface doesn’t let dirt and debris accumulate on the mirror’s surface.
4. Smart Design
A digital or smart mirror gets its name due to its superior design. It has better ergonomics, providing better adjustment for the driver. Plus, smart mirrors have simple controls, like a touchscreen, making them easier to use.
The design has useful functions like anti-glare, reducing the strain on a truck driver’s eyes. Their positioning is also better than a traditional mirror, preventing the driver from stretching from their seat to adjust the mirror.
5. Less Maintenance
Since these mirrors are not prone to dirt, debris, and other outdoor elements, they require less care and maintenance. You only need to clean them once every month or even less frequently if you are not a regular driver. While cleaning, also wipe off any unwanted particles on the camera lens to avoid vision obstruction.
Should You Buy a Digital Mirror?
Yes! A digital mirror can help new and experienced truck drivers, providing a clear and broader line of sight. However, buying the right mirror is equally important. Here’s what you need to consider:
- Your Truck’s Weak Point: If your side blind spots are larger, consider getting a digital side-view mirror. Alternatively, buy a digital rear-view mirror to eliminate your rear no-zone.
- The Video Quality: The cameras of your truck’s smart mirrors should have a video resolution of 720p or higher. If you can afford it, opt for cameras with a video quality of 2K for a crystal-clear view.
- Compatible with Your Truck: Usually, digital or electronic mirrors are universal and can be installed on all truck models. However, some camera systems are specifically designed for different truck types.
- Room for Integration: Consider buying a digital mirror system that allows integration with other ADAS or safety features. So, you can install more cameras or sensors to get even better results.
- The Right Manufacturer: Prioritize a reputable manufacturer with testimonials and product reviews. Reliable sellers, like OYI Electronic, offer supportive warranties, after-sales support, excellent customer support, and online guidance.
How to Install a Digital Mirror On Trucks?
You might think of hiring an automotive professional to install the digital mirror on your truck. Yes, professional installation has benefits, but it can be a hefty investment. So, why not go for DIY installation?
But, before starting, do note setup and process can vary depending on the mirror’s type and specifications. Here’s the universal method that works with most models:
- First, turn off the truck and remove the key from the ignition.
- Now, use a screwdriver to detach the current rear-view or side-view mirror.
- Mount the display unit (screen) where your previous mirror was installed. Use mounting brackets to adjust the position.
- Next, install the camera in the right position following the user manual. The mounting location can be above the license plate (70-100 cm) above the ground.
- Connect the camera cable to the screen. You can skip this if you have a wireless digital mirror system.
- Lastly, plug the screen’s power cord into your truck’s 12V power source.
Turn on the truck to see if the camera and mirror are working properly. Another thing to consider is your system’s specific instructions. You may have additional components, like a sensor, to install with the system. Follow the product manual or contact the manufacturer to clarify any doubts.
Conclusion
Using a truck digital mirror is highly recommended, especially for new drivers. Instead of being challenged by your blind spots, you can eliminate them. These smart mirrors can improve your road awareness and make you a better driver.
Plus, you have many types to choose from. So, consider reviewing your truck’s requirements, driving habits, and budget to make the right decision.
In addition, choosing the right manufacturer is equally important. Consider buying from OYI Electronic to get well-tested, reasonably priced, and durable digital mirrors for your cars and trucks. Even better, you can contact us now and get a free price quote!
