Over the years, parking has become increasingly difficult with urban parking spaces getting more crowded. Given the crowd, low-light conditions, and limited vision, vehicles like cars and SUVs often face the risk of collision when parking or reversing. Trucks make it even worse, given their large magnitude.
So, how to solve this problem? The short answer is a back up camera installation. Back up cameras have become a hot topic in the automotive industry, as they simplify the parking and reversing process. But, that’s not it! Let us tell you why and how back up camera installation can help you in 2025!
What Does a Backup Camera Do?
A back up camera is a type of vehicle camera system in the advanced driving assistant umbrella. Such systems use a camera lens to monitor the environment and provide real-time footage. This live stream helps drivers identify potential threats to parking, including parked vehicles, objects, etc.
A back up camera detects when your car/ truck is in reversing or parking mode and automatically turns on real-time video streaming. Usually, these cameras offer a wide-angle vision to cover a large area.
Let’s look at the key features of this system to understand the back up camera:
1. Real-time Video
With a back up camera, you can say goodbye to the limited vision of your side-view and rear-view mirrors. It provides a wider view and makes it easier to see all nearby parked vehicles, stationary obstacles, etc.
2. Night Vision
Many parking spots are dark due to insufficient lighting, but there’s no need to worry. Most back up cameras have built-in night vision. They turn on automatically based on the environment’s lighting conditions and adjust the light exposure accordingly.
3. Parking Sensor Integration
Many back up cameras allow integration with a parking sensor. This sensor gives you real-time alerts while reversing or parking your vehicle. You can also combine these audible cues with the live visual display for maximum efficiency.

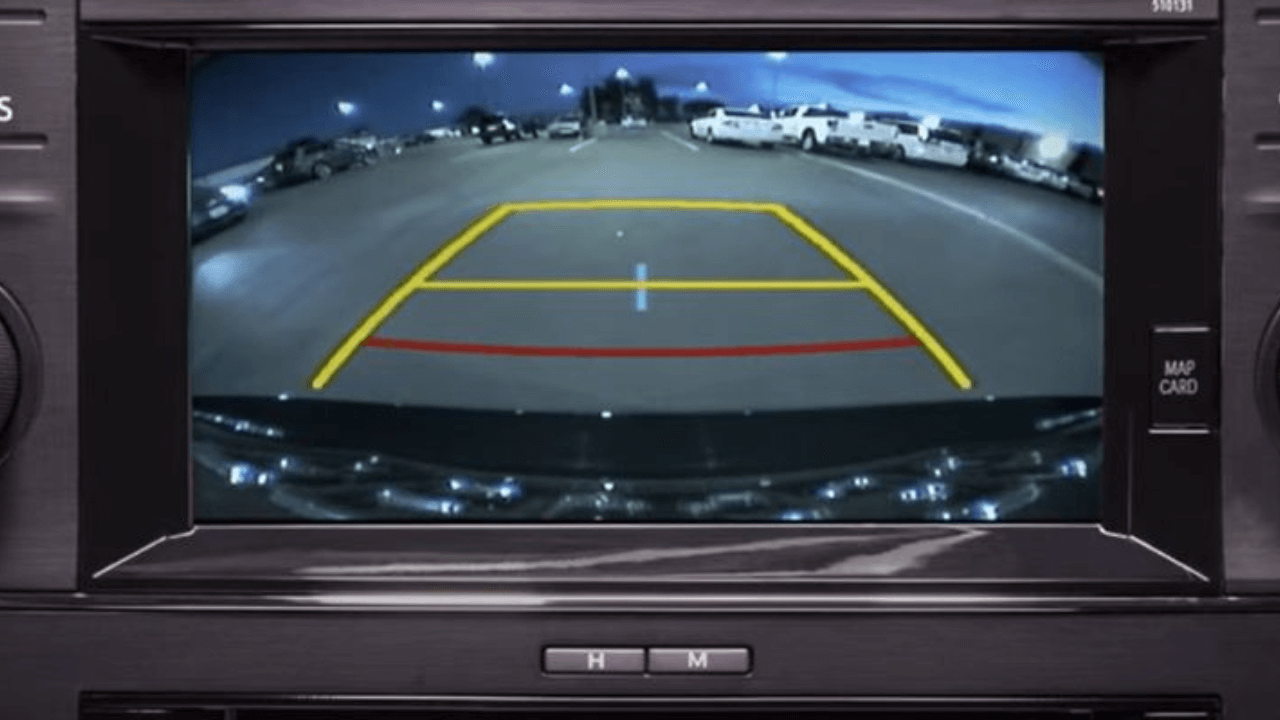

4. Parking Guidelines
You can get guidelines on the screen to assist you with reversing or parking. These visual lines help you find the perfect path to follow, avoiding collisions with nearby obstacles. This is especially helpful for beginners, as they may face challenges when parking and reversing.
Why Do You Need Back up Camera Installation?
Back up camera installation can help keep you and your vehicle safe. Here are some key reasons to opt for this solution:
1. Better All-Round Safety
Remember that you might not be the only person in a parking zone. There are many other vehicles, drivers, and pedestrians. Plus, reversing your vehicle with less vision can lead to devastating accidents in these tight spaces.
A back up camera keeps you and those around you. It also protects your vehicle from minor collisions that lead to hefty repair costs. In short, it is a win-win situation for all!
2. Improves Parking/Reversing Skills
Parking and reversing are two of the most challenging aspects of driving, especially in a truck. Even many intermediate and experienced drivers struggle with these two skills. The key is to understand the inverted steering.
But, a camera with real-time vision makes it easy to track your movements. It also helps you get the hang of inverted steering better and quicker by identifying the wheel position. Using this camera for a few months can significantly increase your parking and reversing skills, eventually making you a better driver.
3. Minimize Blind Spots
Every vehicle has blind spots, but trucks have the worst. Also known as danger zones, these spots are practically invisible to the side-view and rear-view mirrors, causing significant problems on the road.
In such a case, the back up camera with the wide-angle lens makes it easy to minimize your blind spots. You can easily detect all nearby obstacles. Plus, a parking sensor integration can completely eliminate the blind spot problem. That’s because you also get audible alerts, helping you navigate more efficiently.
4. High Market Availability
Over time, back up cameras have become common in the automotive market. Today, they are as accessible as any other advanced driving assistant system. The best part? Their wide market accessibility makes them affordable and budget-friendly.
You can buy them locally or online without inconvenience. You can also easily find expert back up camera installation services in your region.
5. Legal Requirements
Many countries have increased their advanced driving assistance systems (ADAS) manufacturing and assembling capabilities. Similarly, using a back up camera is mandatory to use in such countries.
The prime example is the USA, where the National Highway Traffic Safety Administration (NHTSA) declared the back up camera a legal requirement for vehicles under 10,000 pounds. Alternatively, Italy has also made it mandatory for trucks to use devices that minimize their blind spots in some cities, including Milan.
How to Install Back up Camera?
Installing a back up camera is easier than one might think. You may already have the necessary tools required for the process. Here’s what you may need:
- Screwdriver
- Power drill
- A soft cloth
Do you have these things ready? Then, let’s look at the back up camera installation process!
Step 1: Mount the Camera
The camera is easily the most important part of the entire system. Its installation location can vary depending on your vehicle type and system specifications. But here’s the universal method for cars.
- Use the screwdriver to remove the license plate from your car.
- Now, drill a hole in the rear area and line that hole with your license plate.
- Place the mounting bracket on your proposed location.
- Then, mount the camera on the bracket and adjust its lens. Ensure the camera is firmly mounted on the bracket to avoid future problems.
The method for camera setup works the same on trucks. However, the mounting location can vary. In addition to following your manufacturer’s instructions, here are some common spots for a truck to mount your camera that you might find helpful.
- Tailgate handle
- Roof rack
- Above the license plate
Step 2: Set Up the Screen
Once your camera is in place, it’s time to set up the screen. There are two options to mount your screen:
- In the place of your vehicle’s existing rear-view mirror.
- On the dashboard.
If it’s on the rear-view mirror, here’s what you need to do:
- Remove the existing rear-view mirror using the screwdriver.
- Ensure the frame is large enough to hold the screen. Otherwise, you will need a new frame.
- Lastly, place the screen inside the frame and ensure its position.
What to do if your screen doesn’t require replacing your rear-view mirror? In such a case, you can easily place it on the dashboard. Make sure it is steady to avoid issues like drops when your vehicle brakes suddenly.
Step 3: Put Together the System
Now, it’s time to connect the system. Remember, it is the most technical part of the rear back up camera installation process. But here’s what you need to do:
- Connect the camera end of the video cable to the camera and the other to the screen.
- Route the cable discreetly along the trim lines to avoid power interruptions.
- Now, connect the screen to your vehicle’s power source, usually a cigarette lighter port. You can also use an external battery to power up the system.
- Turn on the system to see all components work.
What to Know About the Back up Camera Installation?
Here are some things to know about the back up camera installation:
- If you have no technical experience and are facing issues with the system, always consult a professional for the installation. While the back up camera installation price may seem high, it will be cost-effective in the long run.
- A wireless system doesn’t require a video cable. Instead, you have to synchronize the system using a mobile app or connect all components via Wireless or Bluetooth.
- Hide the wires along the trim lines, under the seats, or near the doors to keep your vehicle’s interior organized.
- Make sure the power and camera cable doesn’t interfere with the vehicle’s existing electrical connections. Otherwise, it can cause issues like a short circuit.
- Always use safety gear, like gloves, when handling electrical components.
Conclusion
The back up camera installation is a viable solution for the rising parking and reversing problem. You can use this device as your assistant to avoid collisions with poles, parked vehicles, and pedestrians. Even better, you can integrate it with a sensor to get optimal results.
However, buying the right back up camera is equally important. OYI Electronic offers durable back up cameras with a success rate of 98%. Since our cameras are tested in competitive scenarios, they are more likely to assist you in challenging parking/ reversing situations. We also cut down the intermediary prices by providing these systems at factory prices.
