Dash cameras have been in the automotive industry since the early ‘90s. Over time, they have proven their usefulness. The best part about dash cams has always been their versatility. They can fit almost every car, SUV, truck, bus, van, etc. Despite their effectiveness, dash cameras fell somewhat short in trucks. These large vehicles require eyes on all four blind spots. And that’s exactly what a 360 truck camera system does!
Although many people still use dash cams for trucks, lack of visibility is a recurring issue. And, many truckers are not aware of the surround view monitor. This advanced driving assistance system has the potential to solve the visibility problems of a traditional dashcam. How is that? Let’s find out in this detailed guide!
Why Was 360 Truck Camera System Necessary?
You might wonder if a dash cam was doing the streaming and recording functions well? Why did the industry need a 360 truck camera system? Well, there are several reasons. Let us explain:
1. Truck Blind Spots
A truck has blind spots on all four sides due to its large and heavy body. Even worse, its no-zones are significantly more dangerous than a car or SUV. According to a study by the National Highway Traffic Safety Administration (NHTSA), about 840,000 blind spot accidents occurred in a single year only in the USA.
This alarming number led to innovation in the automotive industry. However, traditional dashcams could not solve this problem. Hence, the 360 truck camera system came into the picture.
2. Shortcomings of a Dash Cam
There’s no doubt that dash cameras are useful driving assistant systems. They have been around for a long time. However, truckers have always found dash cams to be inefficient for their fixed camera positions.
Typically, a dash camera system has 1 or 2 lenses on the front and rear, fixed at one position. That means you can only view the area your camera is facing. Also, you do not get vision support to the left and right truck blind spots. Thus, the need for a system with a 360-degree view became significant.
3. Advancement in the Industry
The last decade has seen major innovations in the ADAS industry. Today, we have more safety features with increased functionalities. Combine that with the shortcomings of a traditional dash cam, and innovation was long overdue in the trucking industry.
Today, modern driving systems are feature-rich. For instance, an advanced blind spot detection system has more sensors than a traditional one. Similarly, you will also notice a higher number of cameras, which eventually led to the surround view monitor invention.
4. Threat Perception
Today, roads are more crowded than ever with the number of accidents greater than ever before, recorded yearly. Given the dangers, many countries have already made or aiming to make ADAS mandatory. The prime is Italy, where the increasing number of accidents in Milano is more than alarming.
This caused automotive manufacturers focus on foolproof technologies like 360 camera systems to replace traditional safety features.
How Does a 360 Truck Camera System Actually Work?
Let’s look at the primary functions of semi and commercial truck camera systems:
1. 360-Degree Camera Recording
The number of cameras can vary depending on the system’s specifications. However, most 360 truck systems have four cameras. One is mounted above the front bumper, while the other is at the rear bumper. Additionally, two cameras sit on the left and right sides. This way, the system can provide a complete 360-degree view of the road.
The specifications and functionalities of the cameras can also vary depending on the system. For instance, some advanced cameras use image processing to alert the driver, ensure his/ her safety
2. Real-time Streaming
Many dash cams lack the feature of real-time streaming. It provides an extra pair of eyes to the driver. While recorded footage can be helpful, real-time viewing helps during the critical hours on the road.
How does it work? The 360 truck camera system uses a display unit. Generally, this screen sits on the truck’s dashboard. However, some systems replace your existing rear-view mirror with this display unit. Either way, it is accessible to the driver for real-time viewing.
3. Additional Functions
Modern 360 camera systems offer better streaming and recording with advanced functions, like objection detection. It adds a microwave or ultrasonic sensor with cameras, so the sensor can detect the distance and speed of nearby vehicles for threat perception.
In addition, most 360 camera systems allow integration with other ADAS and safety features. That means you can integrate them with blind spot monitors, GPS navigation, forward collision warning, etc.

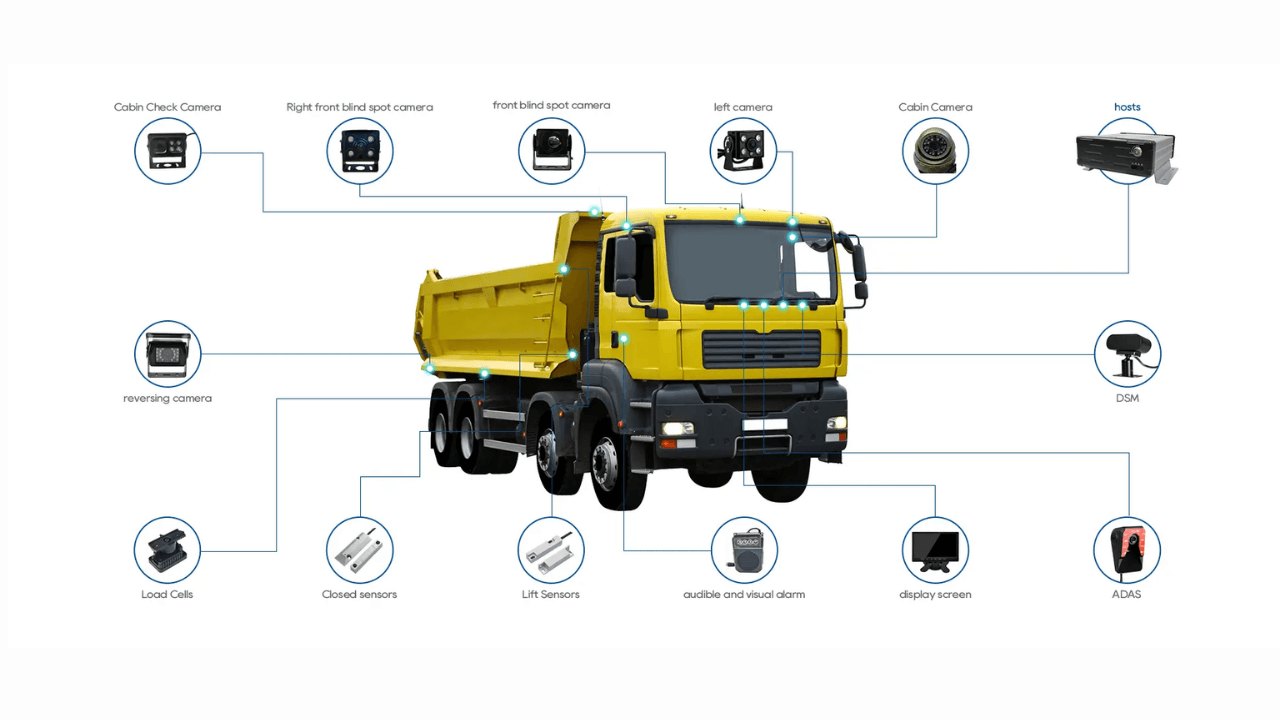

Best Practices for Installing a 360 Truck Camera System
The installation process of a surround-view monitor differs, depending on its components, specifications, additional features, etc. But that’s not what we are going to discuss. While installation can vary, some tips can help get the most out of every 360-camera system. So, let’s explore the best practices to make your purchase more cost-effective:
Camera Positioning
You can find the exact camera positions in the 360 truck camera’s product manual. However, they do not discuss the differences in a truck’s size, build, and make. So, it is up to you to find the perfect positions to mount cameras. Generally, there are two rules to keep in mind:
- The cameras should be mounted high enough to avoid obstructions.
- Make sure to minimize the blind spots as much as possible.
It is best to test different positions before making the final decision. Alternatively, you can consult a professional for expert opinion.
Routing Cables
The cables in the 360 truck system can make a mess, as it has several components including cameras, a screen, and a control box. Hence, to route the cables securely, consider the following tips:
- Ensure the cables do not interfere with any truck’s components. Otherwise, it can result in electrical problems like a short circuit.
- Hide all the wires and extensions behind seats and other truck components to keep the interior organized.
Carefully Go Through the Product Manual
Every truck camera system has different installation requirements. Some require drilling holes in the truck’s body to mount cameras while others only use adhesives for placing cameras. Plus, some systems may have additional features like sensors, GPS cords, etc. Hence, the key to error-free installation is the product manual. Make sure to read how to set up each component to avoid bigger problems that damage and devalue your truck.
Maintenance Of 360 Truck Camera System
Did you know that a 360 truck camera system requires minimal care? But that’s not to say it does not need any maintenance. Taking some simple steps can extend the lifespan of your camera system. Also, it can maintain the system’s accuracy, video quality, and consistency. So, let’s look at the maintenance steps:
1. Cleaning the Camera Lenses
The cameras can resist outdoor and weather elements. However, the lenses require cleaning every once in a while. But, it is not a hectic task. All you need is a cleaning agent that doesn’t damage the lenses. Use a soft cloth to wipe the cameras gently.
You only need to clean your lenses every few months. But, you must prioritize it after driving in extreme conditions, like sandstorms, snowfall, etc.
2. Check for Electrical Problems & Battery
The battery plays a key role in keeping your cameras functional, as it can expire after a while. Hence, it is important to keep track of your battery life. It is highly recommended to keep extra batteries by your side. This way, you can avoid disruptions during long drives.
Also, you can perform manual inspections for electrical problems in your truck. Make sure the cables and extensions work properly. If there’s an error, consider replacing them instantly.
3. Keep the Software Updated
The product manual or manufacturer will tell you if the 360 truck camera system has live service. This means its software will continue to get updates. It is best to keep the system updated to avoid detection problems and other issues.
If your camera system connects to a mobile phone via an application, consider checking for the app updates. This step is highly recommended for fleet managers, as their work can face serious disruptions if the application gets outdated.
Conclusion
The 360 truck camera system has changed the dash cam industry with its innovation. It is an advanced tool, packed with essential features a trucker needs. Plus, it increases the number of cameras for better truck driver assistance, minimizing blind spots, and promoting road awareness.
While the surge of surround view monitor systems benefits the industry, it might confuse beginners. They might not know how to buy the best 360 truck camera system. If so, consider OYI Electronic for high-end camera systems at affordable, factory prices. Message us now for free price quotes, discuss customization, and more!
